Cooling Solutions
V-Type Dry Cooler
Zero water-loss V-type dry cooler for liquid cooling and chiller heat rejection.
Overview
Product Overview

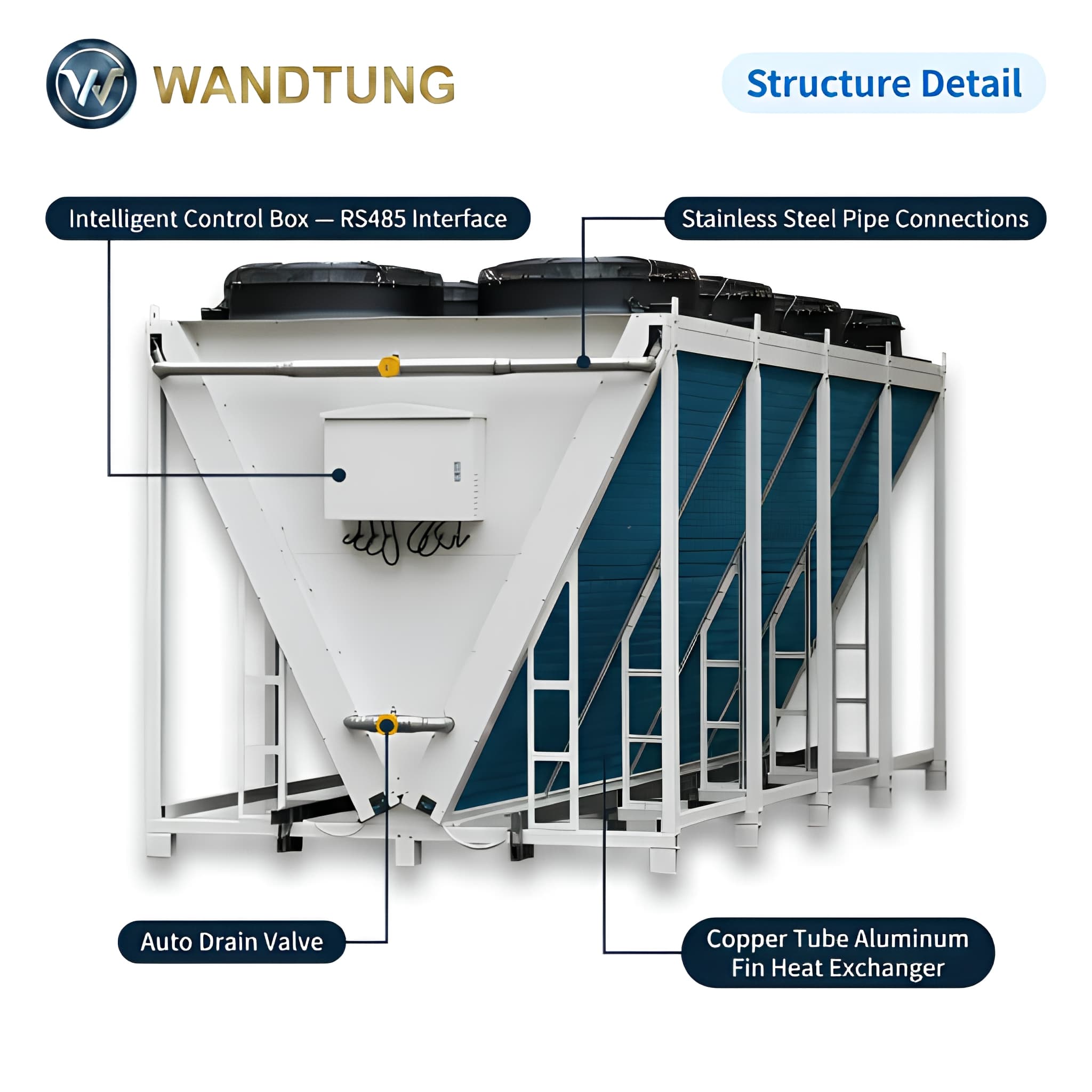

The Wandtung V-Type Dry Cooler rejects heat from a liquid cooling or chilled water loop to ambient air with zero water consumption, using V-arranged copper-tube/aluminum-fin coils, EC axial fans with 10–100% variable speed, and a hot-dip galvanized steel frame. It scales from 120kW to 1400kW across a standard model range, supporting the primary or secondary loop of data center liquid cooling and industrial chiller systems.
Capabilities
Key Features
- Zero water-loss dry cooling — no evaporative water consumption

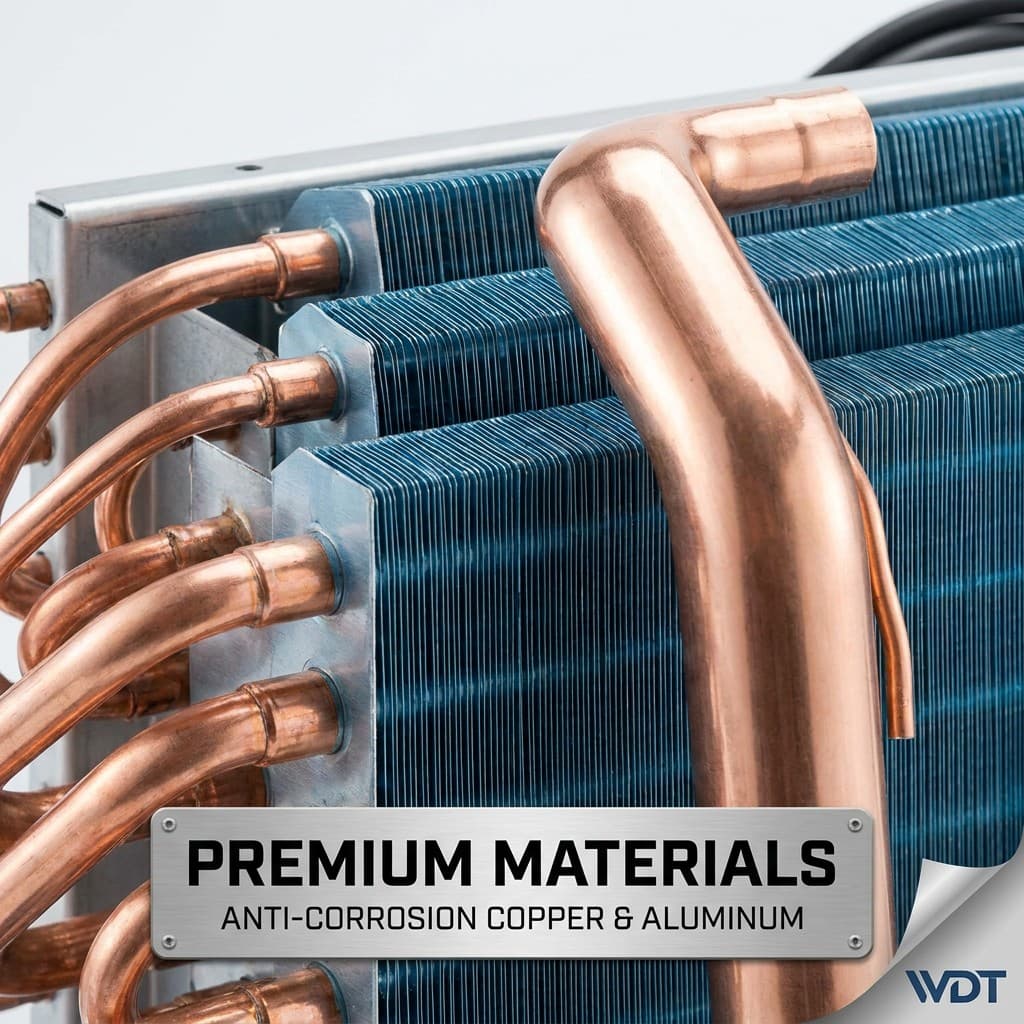

- V-type copper-tube, aluminum-fin coil arrangement

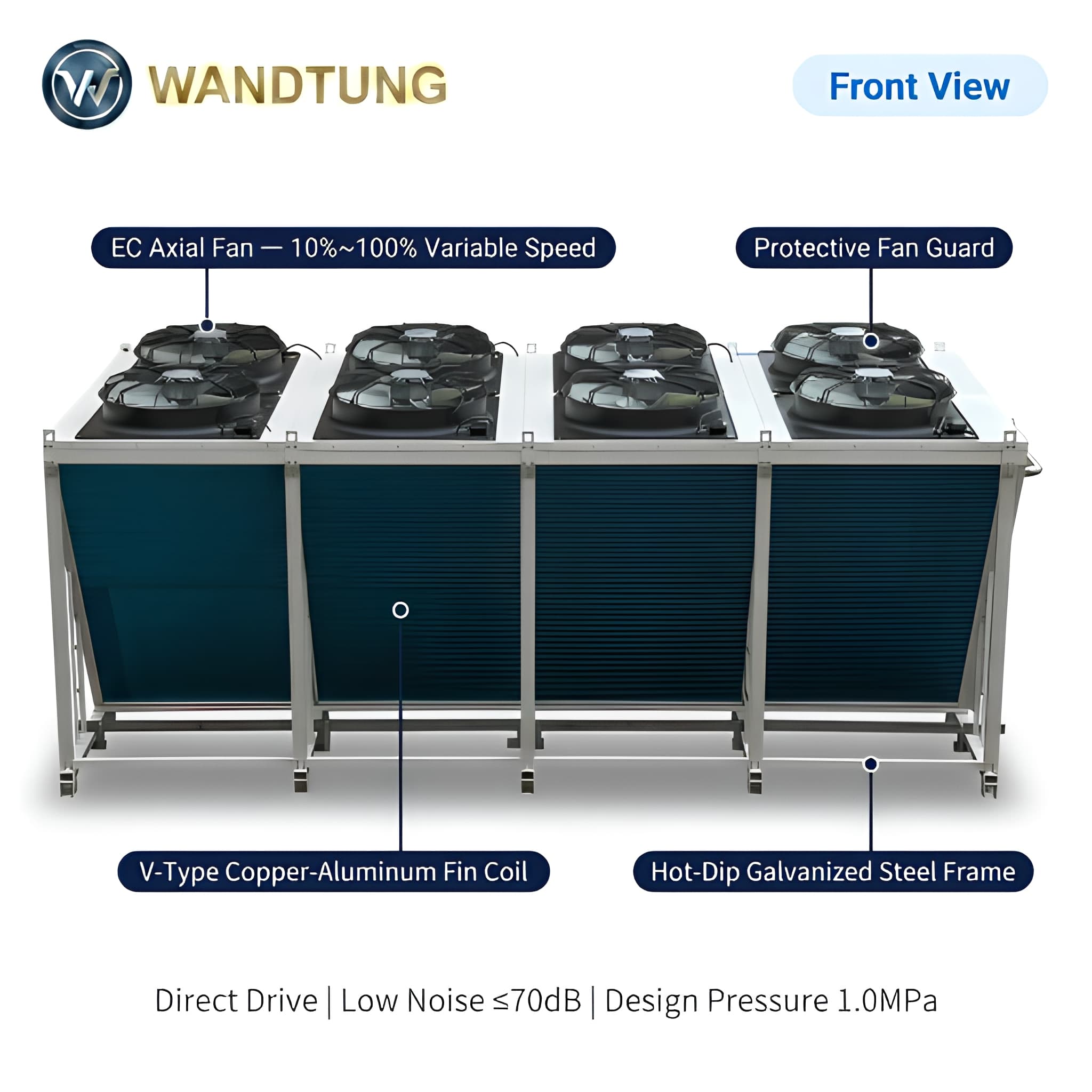

- EC axial direct-drive fans, 10–100% variable speed
- Hot-dip galvanized steel frame with protective fan guards
- RS485 communication for BMS/monitoring integration
- Model range from 120kW to 1400kW; OEM/ODM and custom capacity available
Specifications

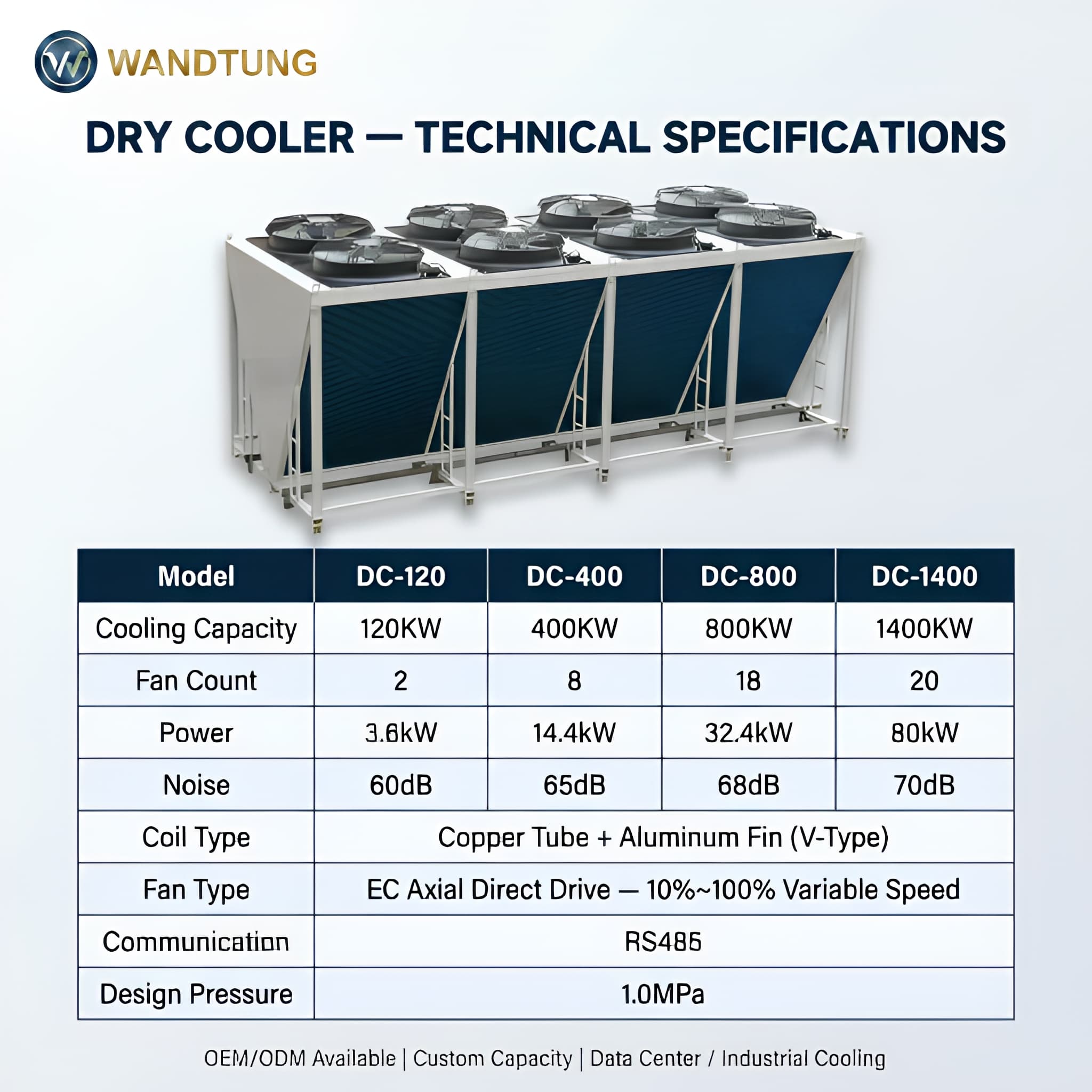

Technical Specifications
Performance (by model)
| DC-120 | 120kW, 2 fans, 3.6kW fan power, 60dB |
|---|---|
| DC-400 | 400kW, 8 fans, 14.4kW fan power, 65dB |
| DC-800 | 800kW, 18 fans, 32.4kW fan power, 68dB |
| DC-1400 | 1400kW, 20 fans, 80kW fan power, 70dB |
Construction
| Coil Type | Copper tube + aluminum fin, V-type arrangement |
|---|---|
| Fan Type | EC axial direct drive, 10–100% variable speed |
| Frame | Hot-dip galvanized steel |
| Design Pressure | 1.0 MPa |
| Communication | RS485 |
Deployment
Applications

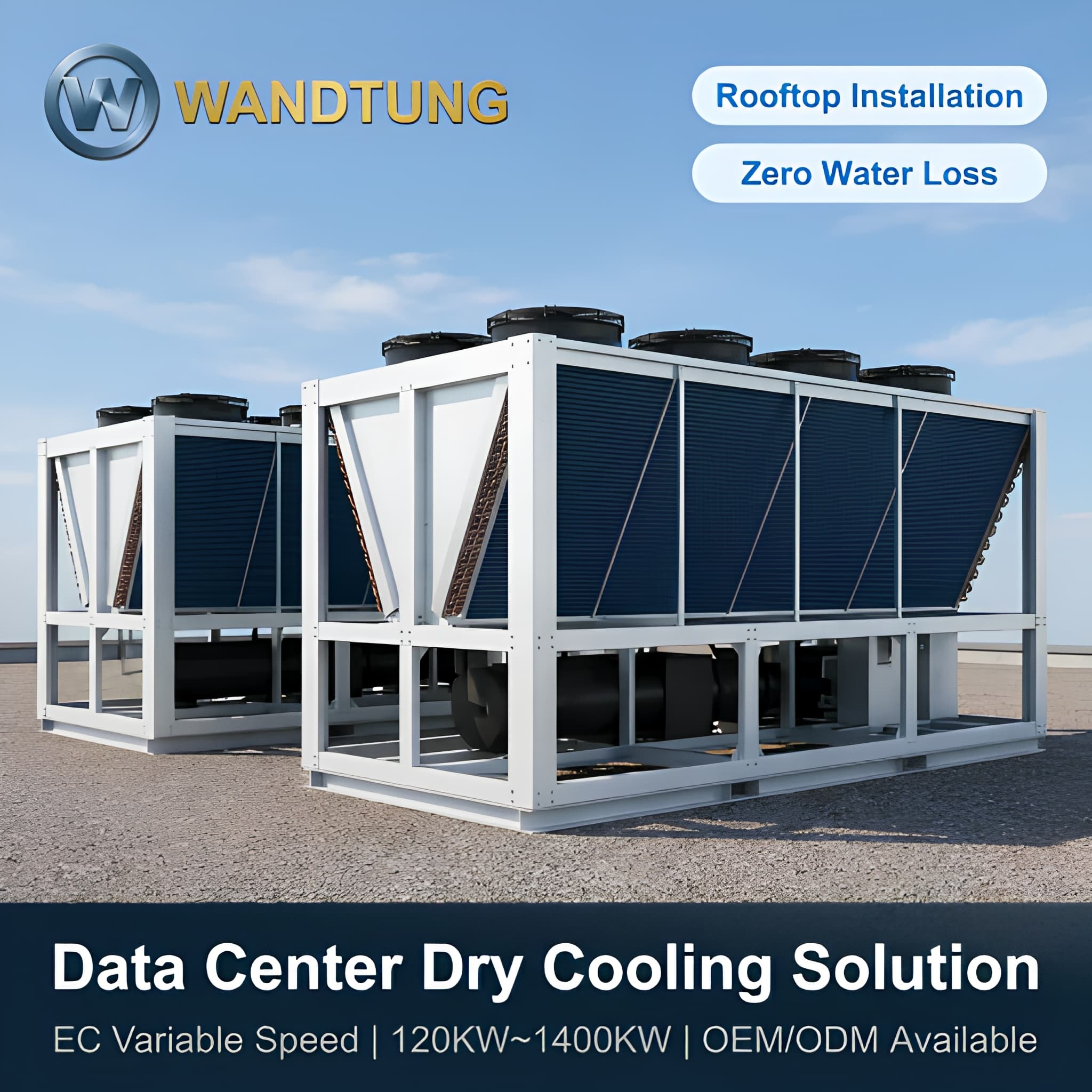

- Data center liquid cooling loop heat rejection
- Chilled water system heat rejection
- Industrial process cooling
- Sites requiring zero water consumption for cooling
Configuration
Customization Options
- Cooling capacity
- Fan count / configuration
- Coil coating
- OEM/ODM
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
A dry cooler rejects heat to ambient air through a closed liquid loop and finned coil, using no evaporative water — unlike a cooling tower, which relies on water evaporation to reject heat. Dry coolers trade some efficiency in hot climates for zero water consumption and lower maintenance.
