Polymer Fiber Optic Cable Tray
Modular polymer raceway system protecting fiber optic cable bend radius through the full pathway.
Overview
Product Overview
The Wandtung Polymer Fiber Optic Cable Tray is a modular, UL94-V0 flame-retardant plastic raceway system with smooth, rounded internal channels that protect fiber optic cable from sharp bends and abrasion along its entire route. The modular fitting range — straight sections in multiple widths, 90° and 45° elbows, tees, reducers and vertical risers — snap together with tool-free connectors to build a complete enclosed fiber pathway between racks, rooms and floors.
Capabilities
Key Features
- UL94-V0 flame-retardant polymer construction
- Smooth, rounded internal channel protects fiber bend radius along the full route

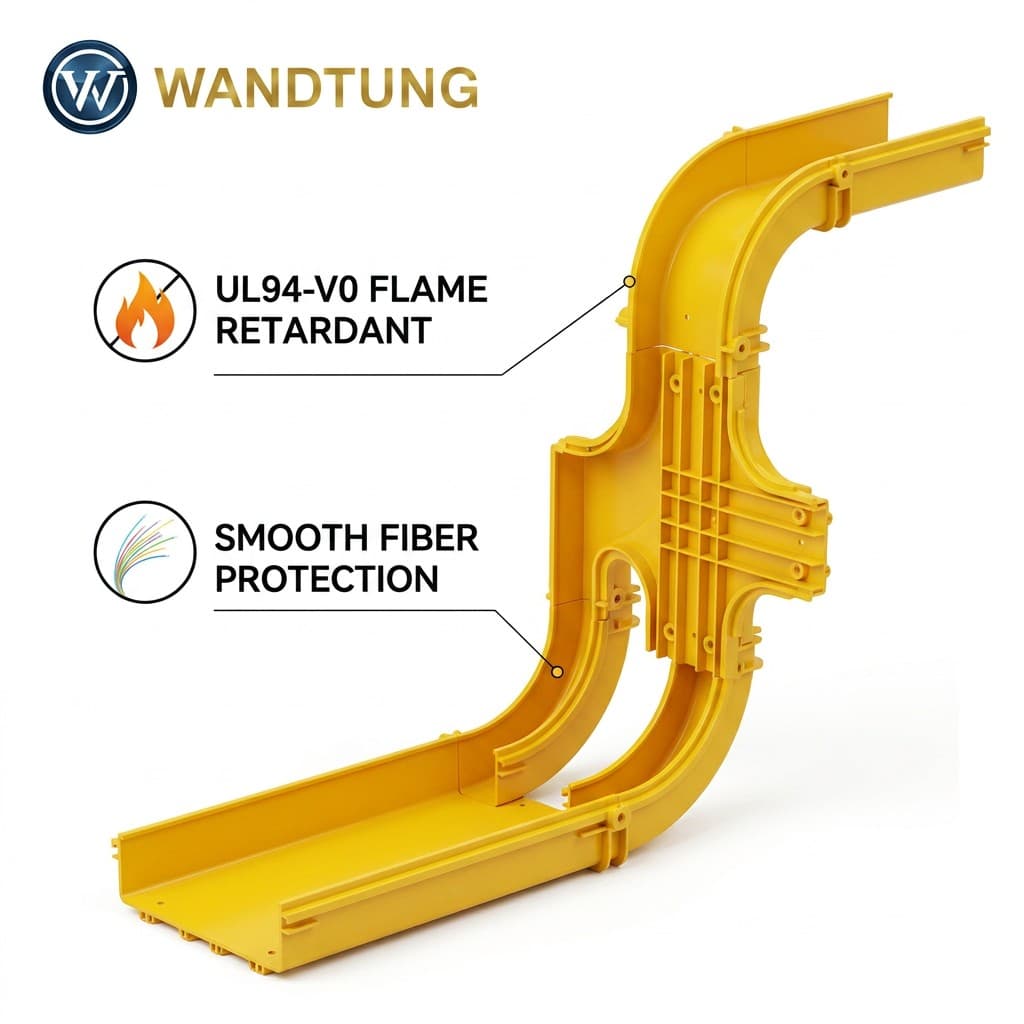

- Full modular fitting range: straight sections, 90°/45° elbows, tees, reducers, vertical risers
- Snap-fit, tool-free connectors between sections

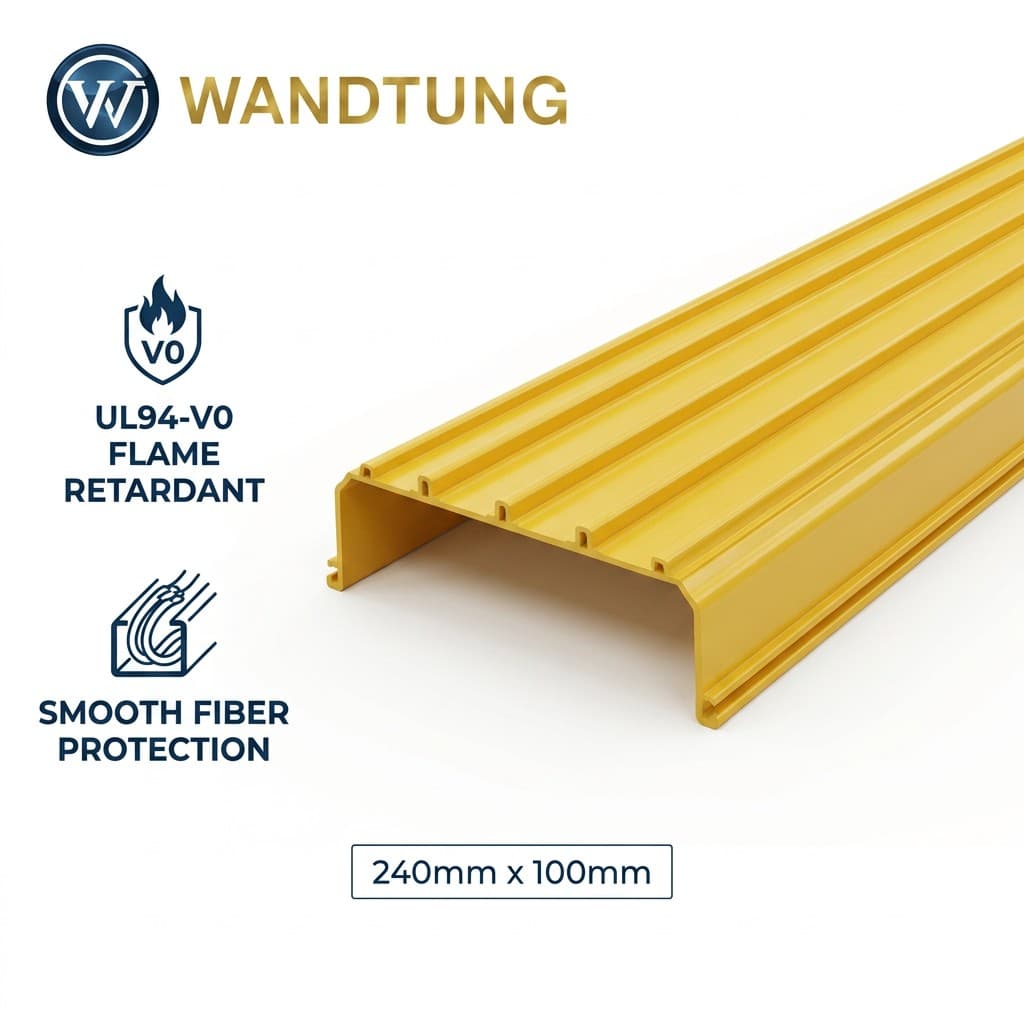

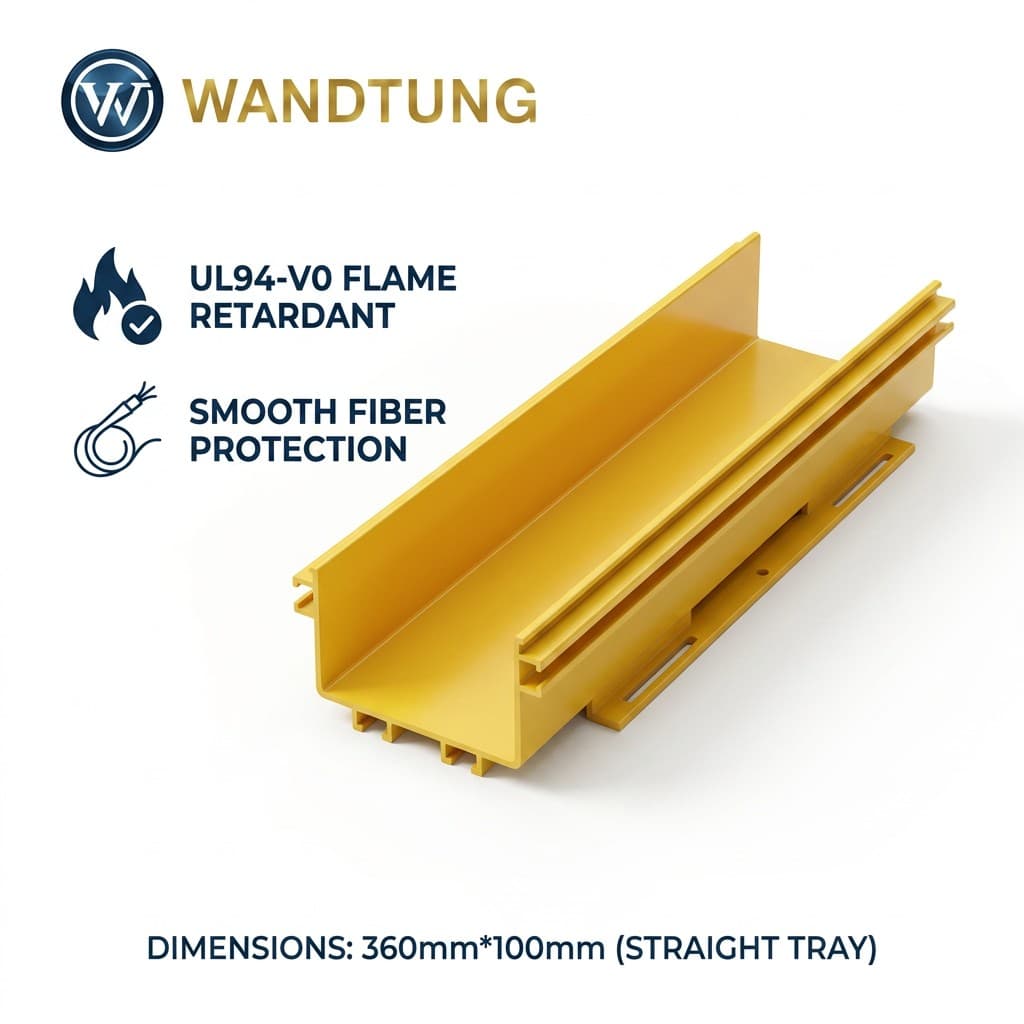

- Straight sections available in 120mm, 240mm and 360mm widths (100mm depth)

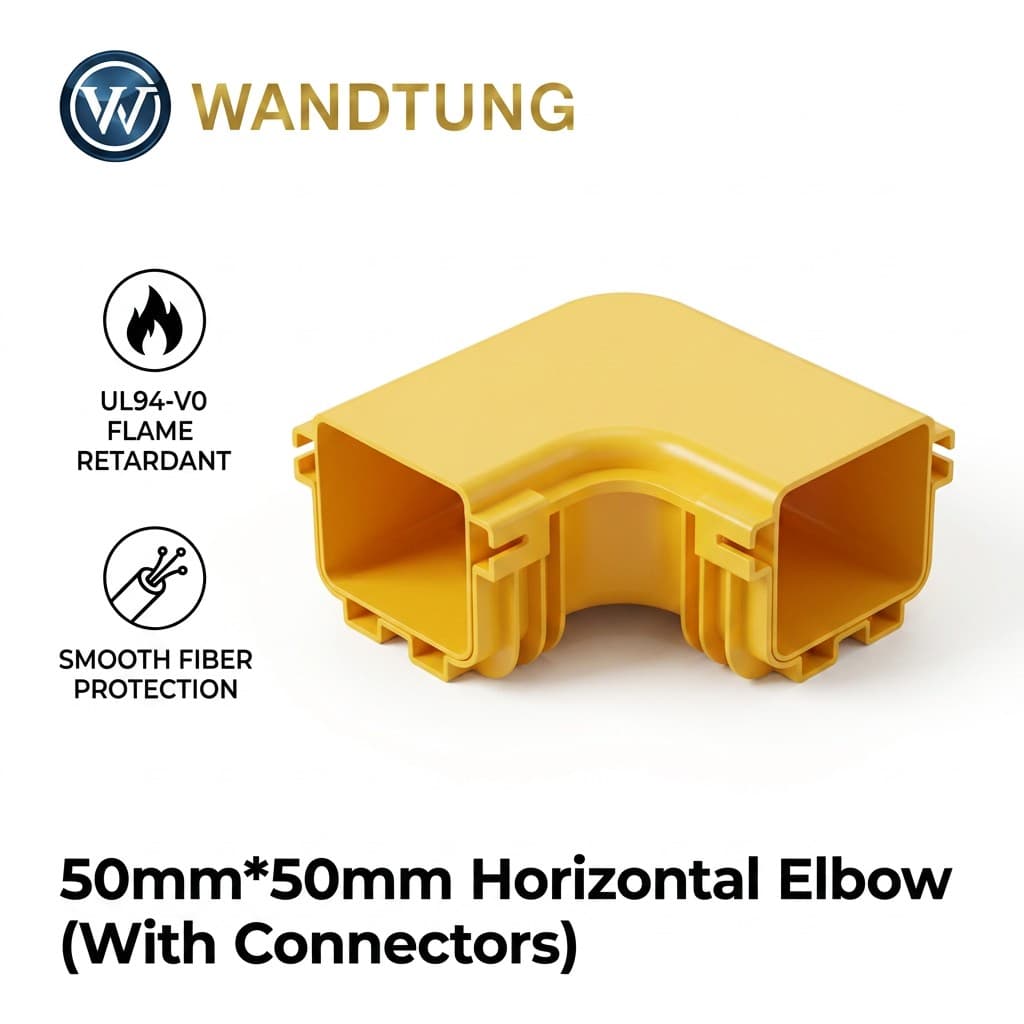

- Reduced-size (50x50mm) fittings for tighter routing
Specifications
Technical Specifications
Construction
| Material | UL94-V0 flame-retardant polymer |
|---|---|

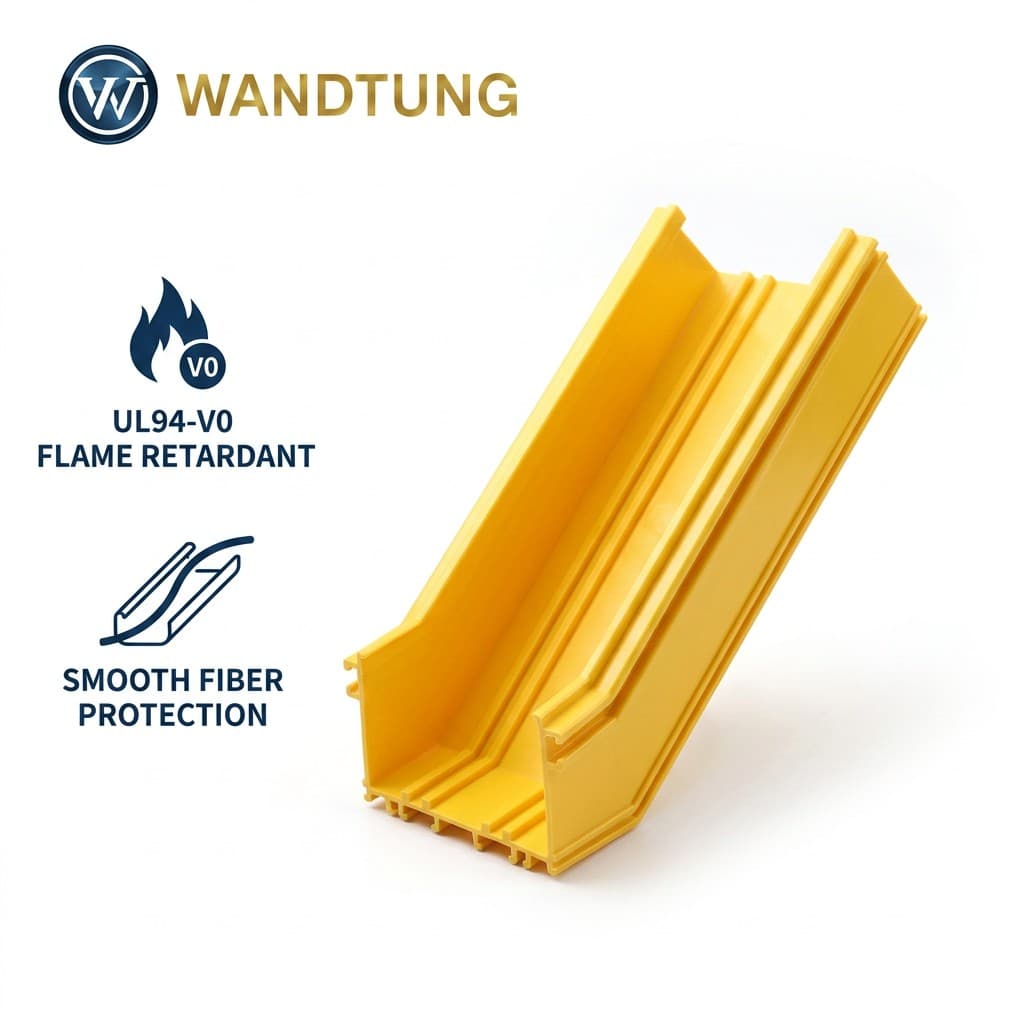

| Straight Section Widths | 120 / 240 / 360 mm (100mm depth) |
| Reduced-Size Fittings | 50 x 50 mm elbow |
| Connection | Snap-fit, tool-free |
Fitting Range

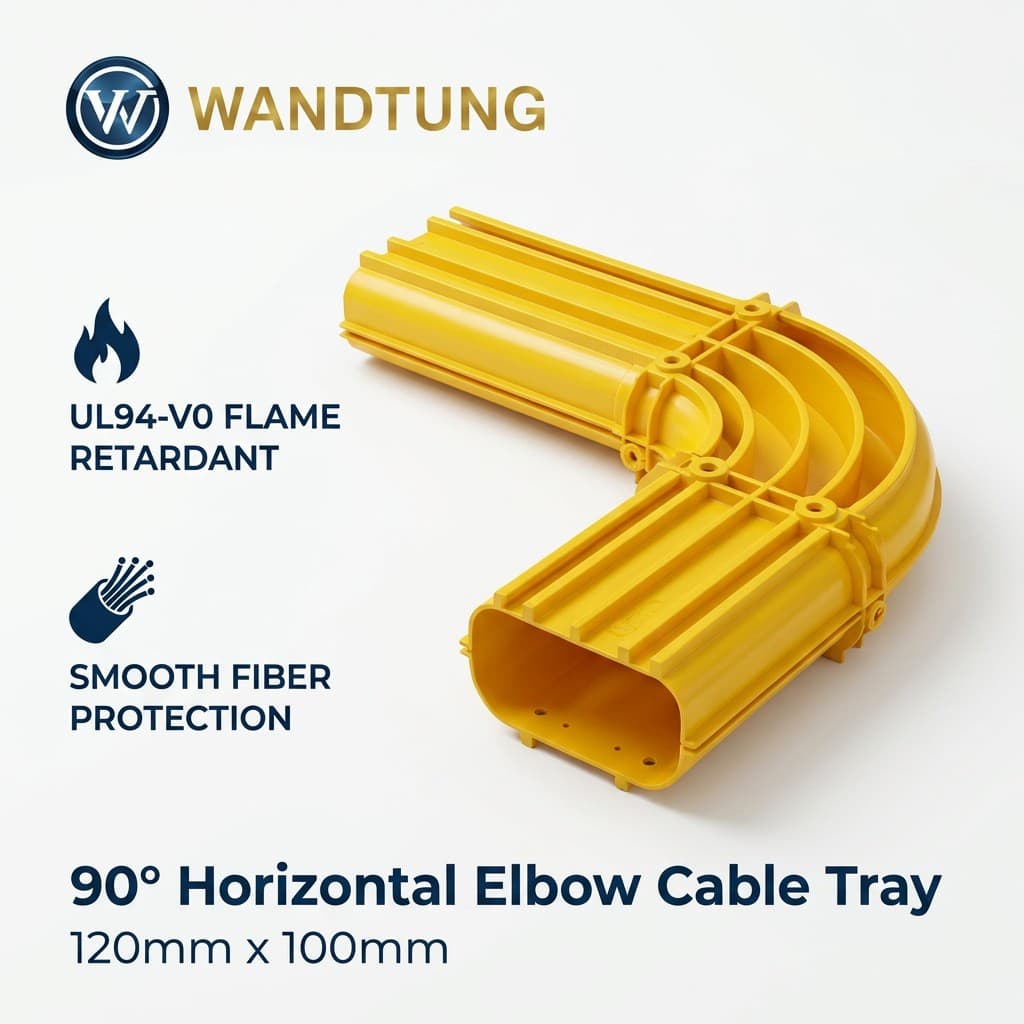

| Elbows | 90° horizontal, 45° riser |
|---|---|

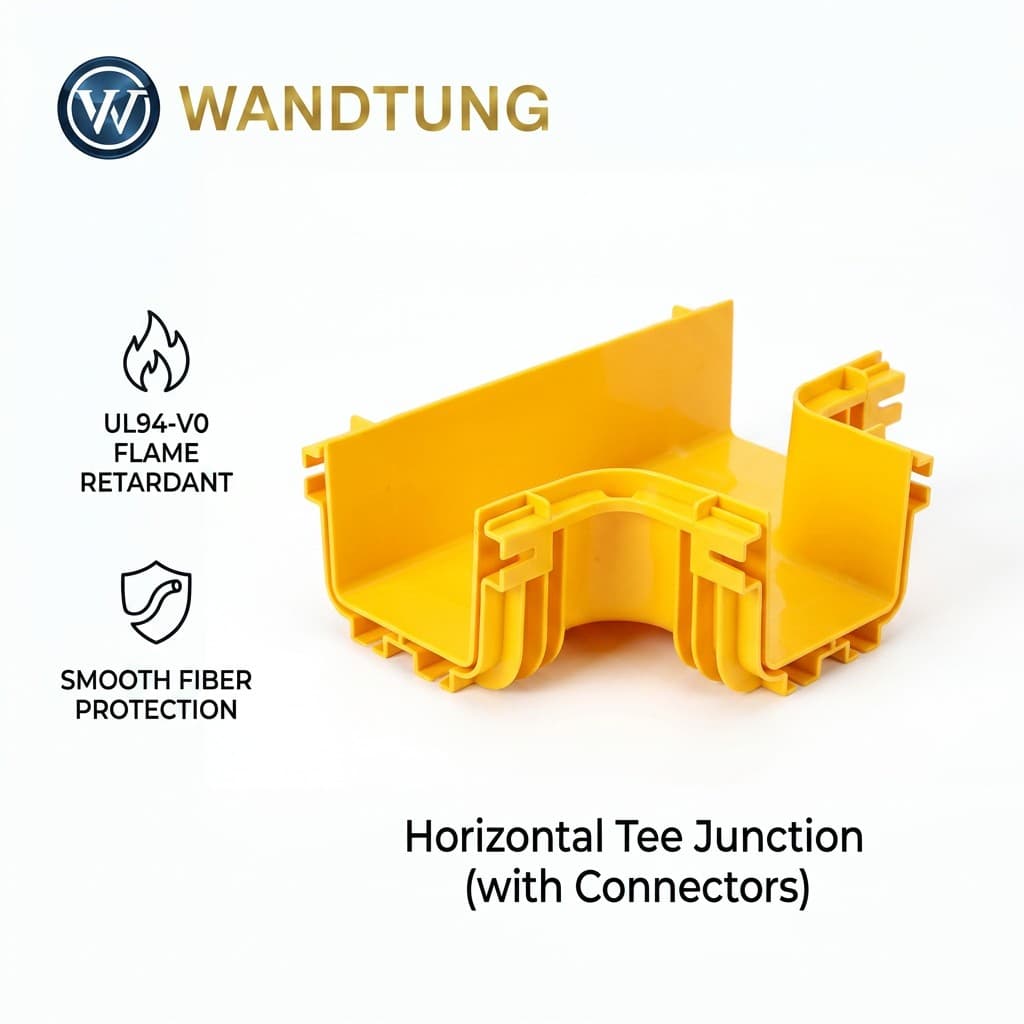

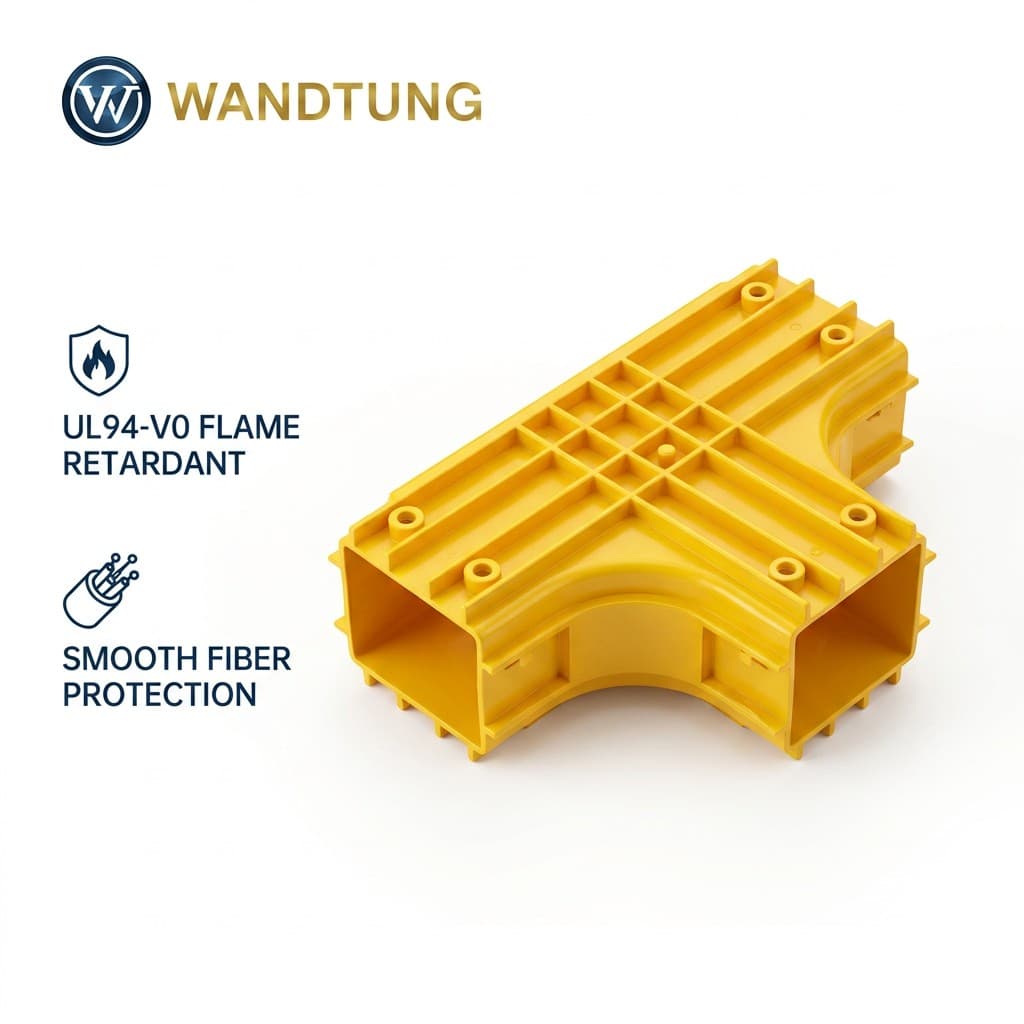

| Junctions | Tee (plain and with connector port) |

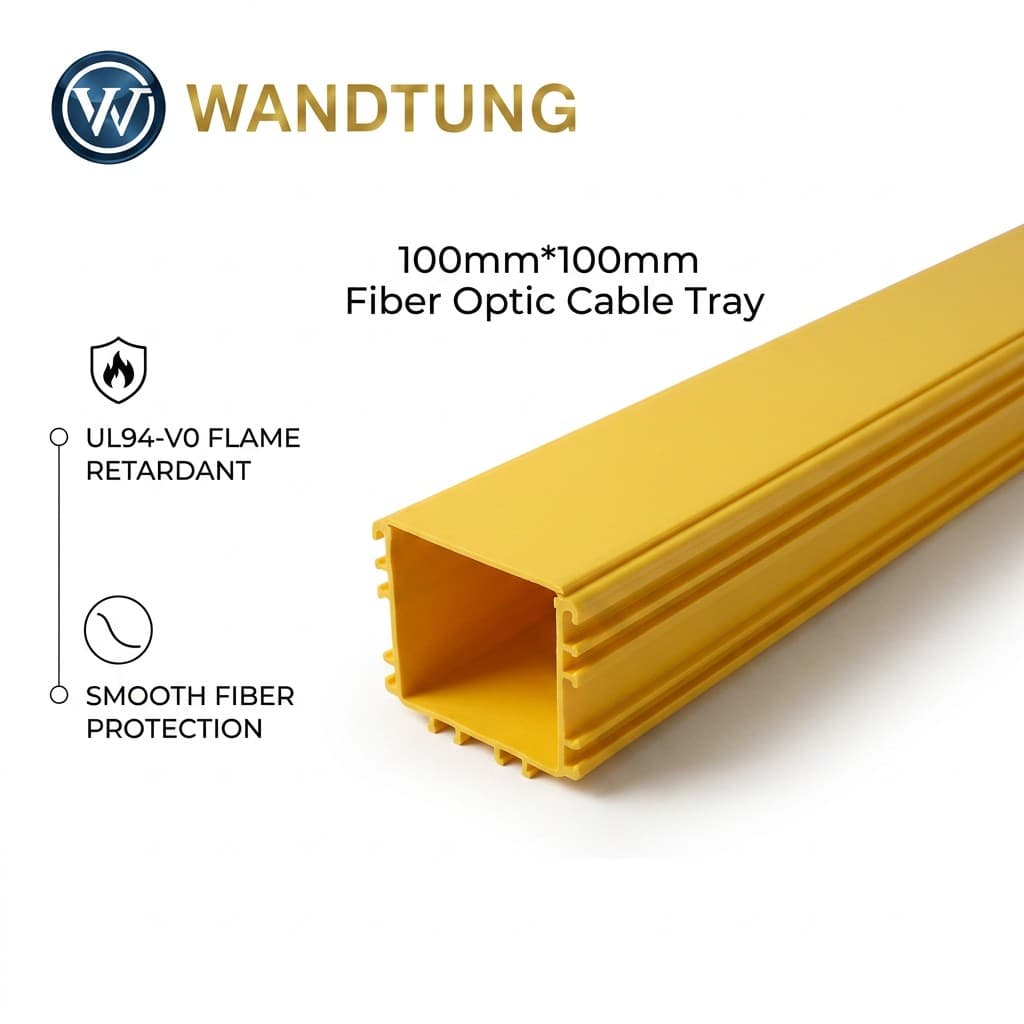

| Transitions | Reducer, vertical riser, square straight duct |
Deployment
Applications
- Fiber optic cable pathways between racks and rows
- Inter-room and inter-floor fiber backbone routing
- Data center and telecom fiber distribution
- Structured cabling rooms requiring bend-radius protection
Configuration
Customization Options
- Section width
- Fitting mix
- Color
- OEM/ODM
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
A dedicated polymer fiber tray fully encloses the cable in a smooth, rounded channel that maintains minimum bend radius and protects against abrasion along the entire route, whereas open wire mesh or ladder trays leave fiber exposed and rely on the installer to manage bend radius manually at every turn.
