Cooling Solutions
In-Row Cooling
Cooling unit installed directly within the cabinet row, next to the IT load it serves.
Overview
Product Overview

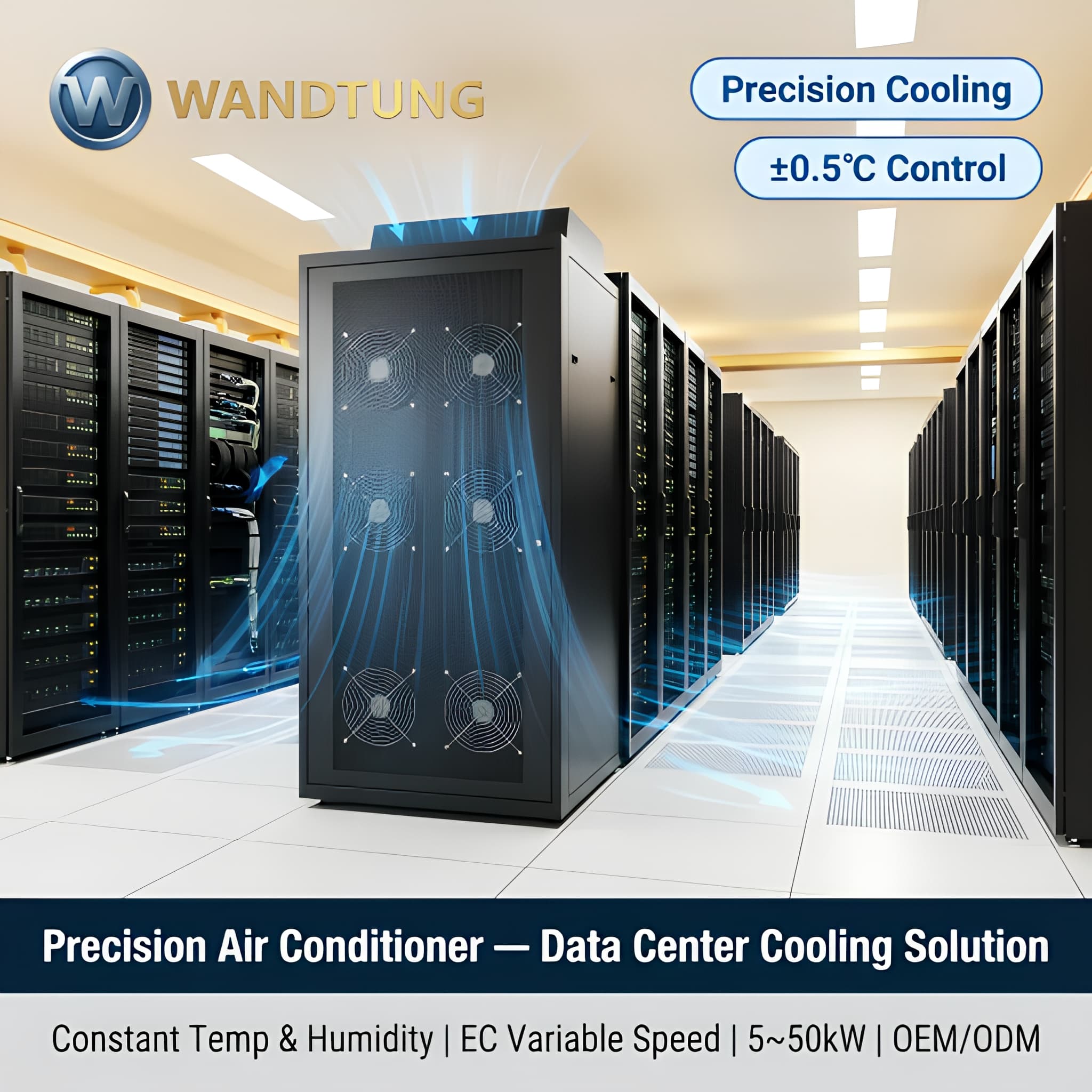

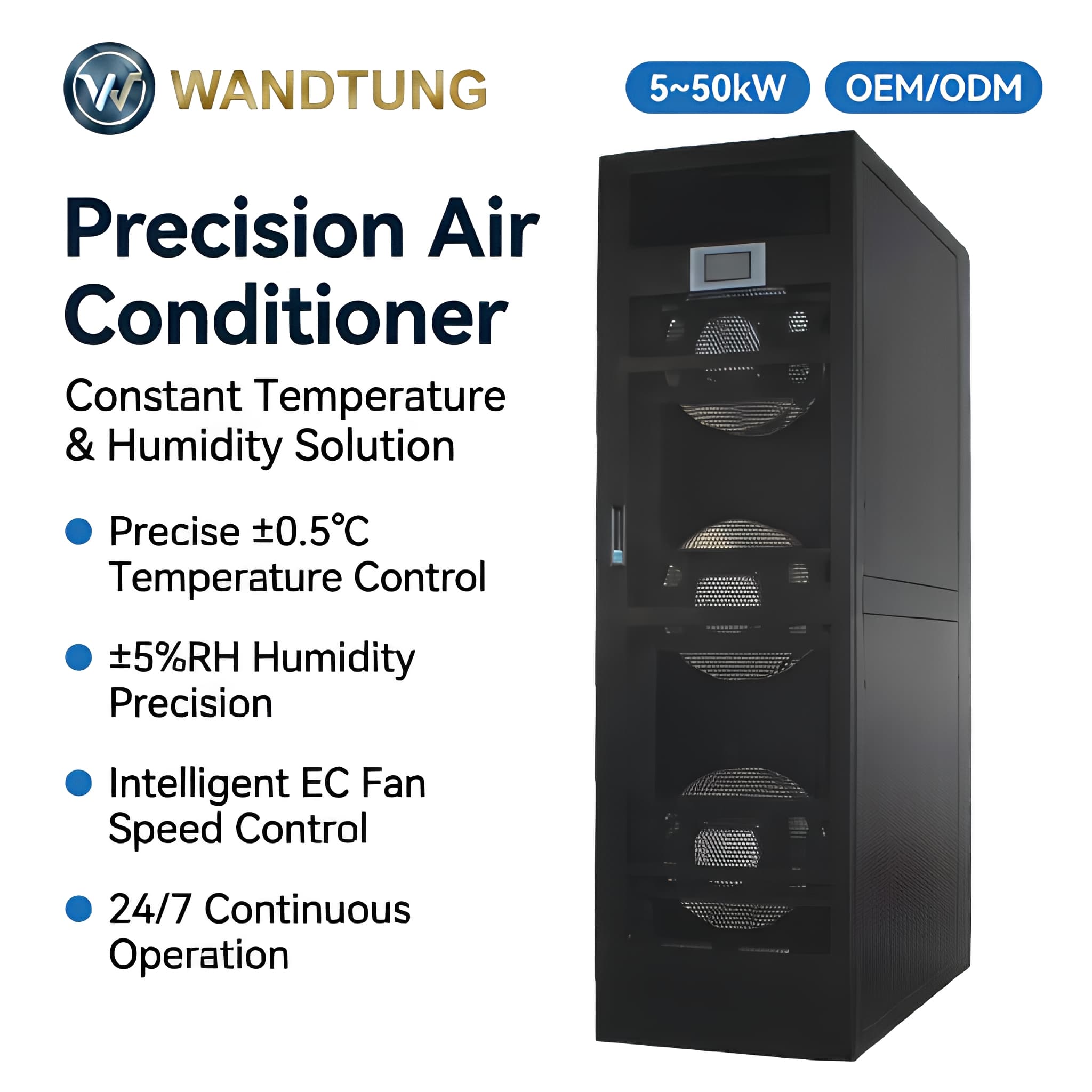

Wandtung In-Row Cooling units install directly within the cabinet row — the same footprint as an IT cabinet — placing cooling capacity immediately next to the racks generating heat, for tight, predictable temperature control at the row level. The unit holds ±0.5°C temperature and ±5% RH humidity precision using variable-speed EC fans, with an intelligent controller for remote monitoring and 24/7 continuous-duty operation.
Capabilities
Key Features

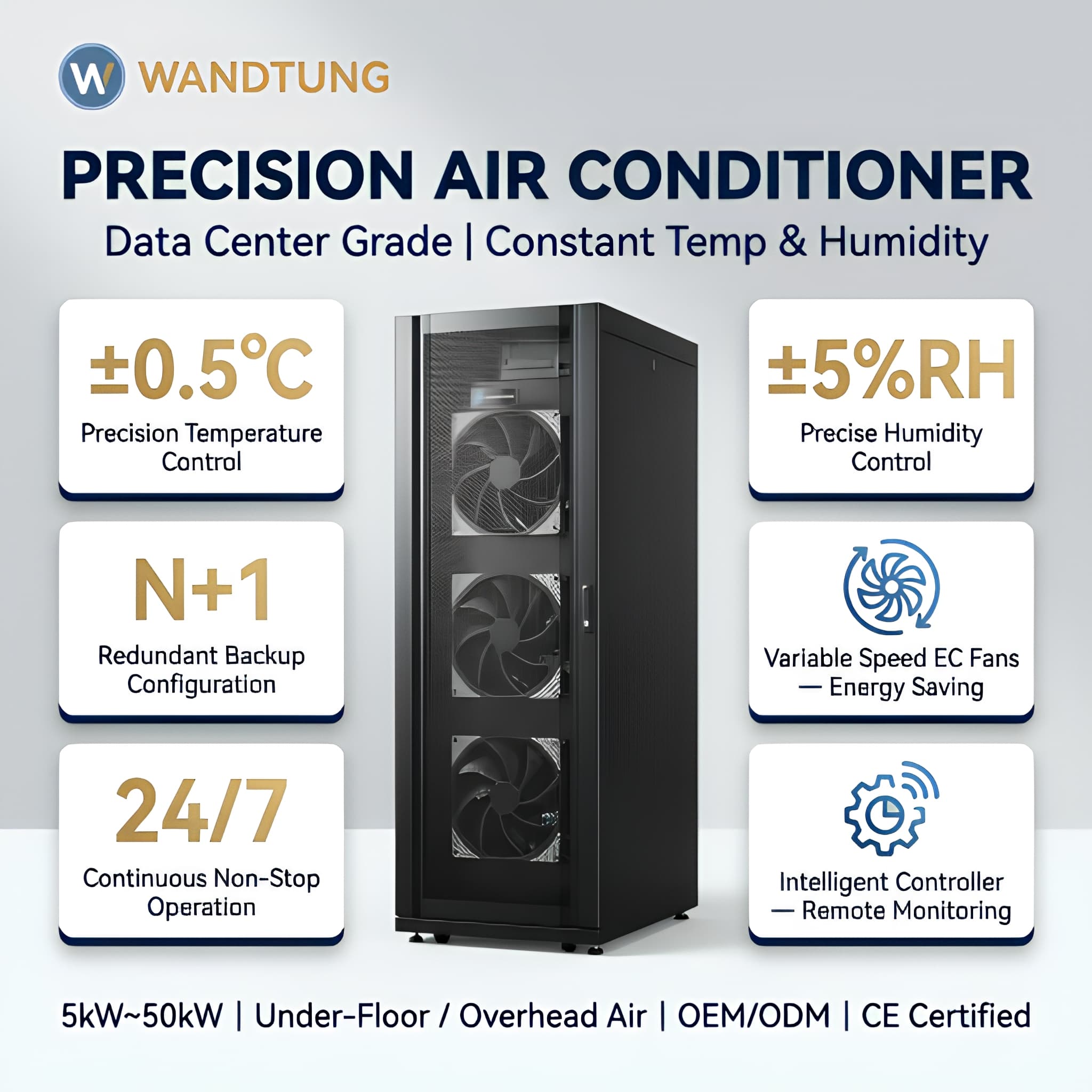

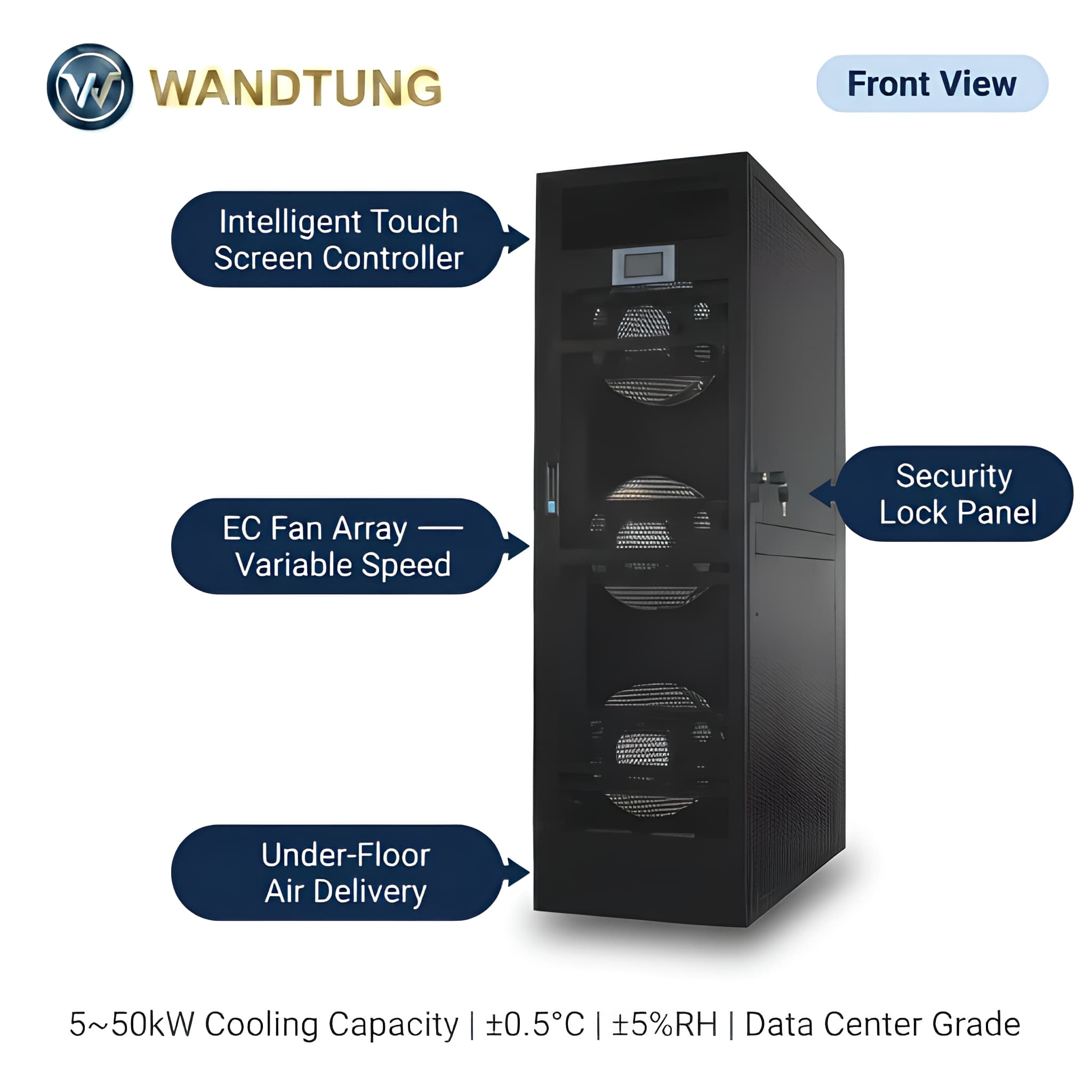

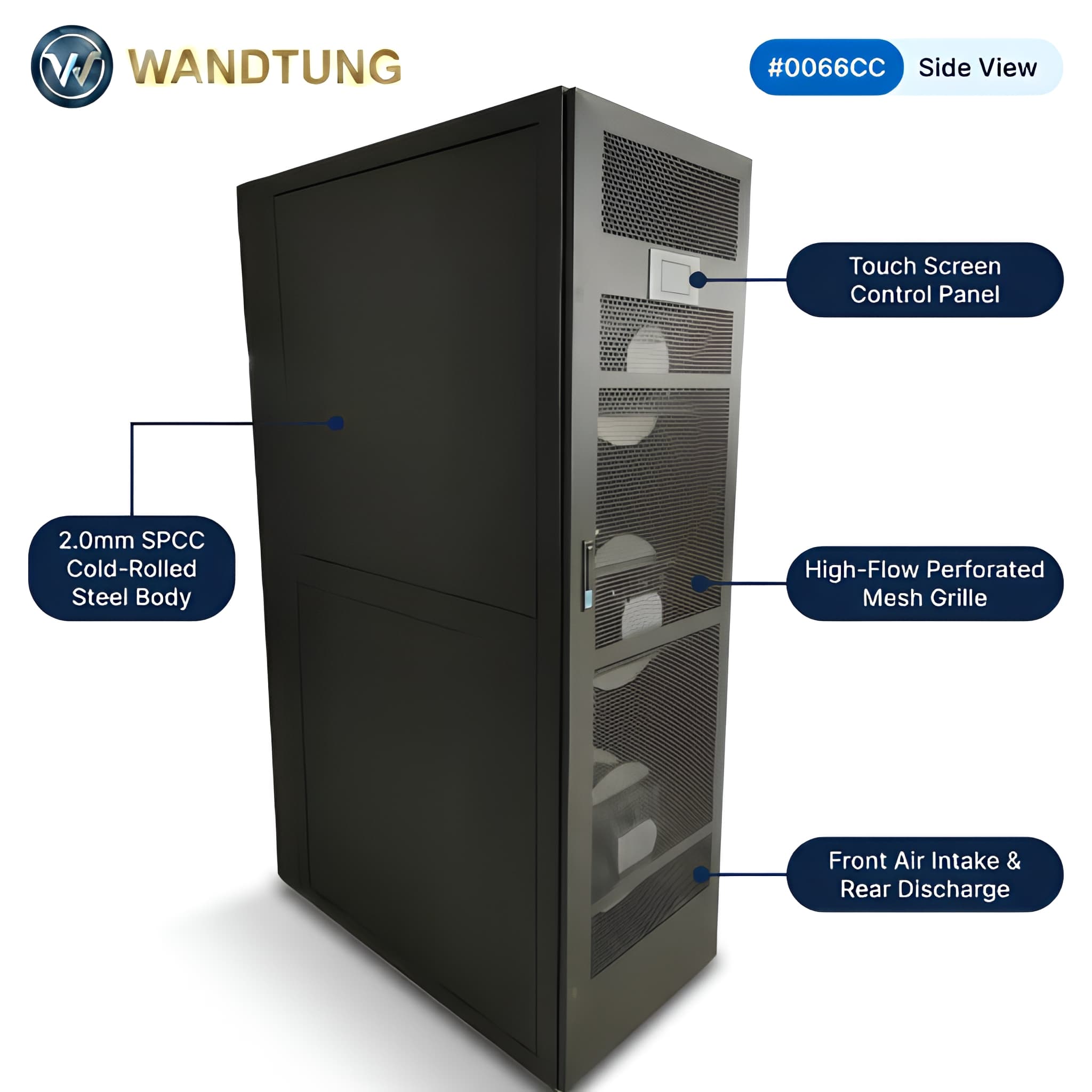

- Cabinet-footprint form factor fits directly into the row
- Close-coupled to the IT load for tight temperature control
- ±0.5°C temperature and ±5% RH humidity precision
- Variable-speed EC fans for energy-efficient airflow
- Intelligent controller with remote monitoring
- N+1 unit redundancy within a row
- 24/7 continuous-duty operation; compatible with hot/cold aisle containment
Specifications
Technical Specifications
Performance
| Cooling Capacity | 5 kW – 50 kW per unit |
|---|---|
| Form Factor | Standard cabinet footprint |
| Temperature Precision | ±0.5°C |
| Humidity Precision | ±5% RH |
| Air Distribution | Under-floor / overhead |
| Redundancy | N+1 unit-level redundancy supported |
Control
| Fans | Variable-speed EC fans |
|---|---|
| Controller | Intelligent controller, remote monitoring |
Deployment
Applications
- High-density colocation rows
- Micro modular data centers
- Containment-based cooling designs
Configuration
Customization Options
- Capacity
- Redundancy level
- Refrigerant type
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
Why choose in-row cooling over a traditional room air conditioner?
In-row cooling places capacity directly next to the IT load rather than relying on room-wide air mixing, giving tighter temperature control, shorter airflow paths and better support for the higher densities seen in modern racks.
How precise is the temperature and humidity control?
The unit holds ±0.5°C temperature and ±5% RH humidity precision using variable-speed EC fans and an intelligent controller, running continuously in 24/7 duty-cycle operation with remote monitoring.
Interested in In-Row Cooling?
Get a datasheet, technical consultation, or a project-specific quote from our engineering team.
