Power Distribution
Multi-Function Universal Socket PDU
1U rack PDU with universal multi-standard sockets and a 360° rotatable mounting bracket.
Overview
Product Overview

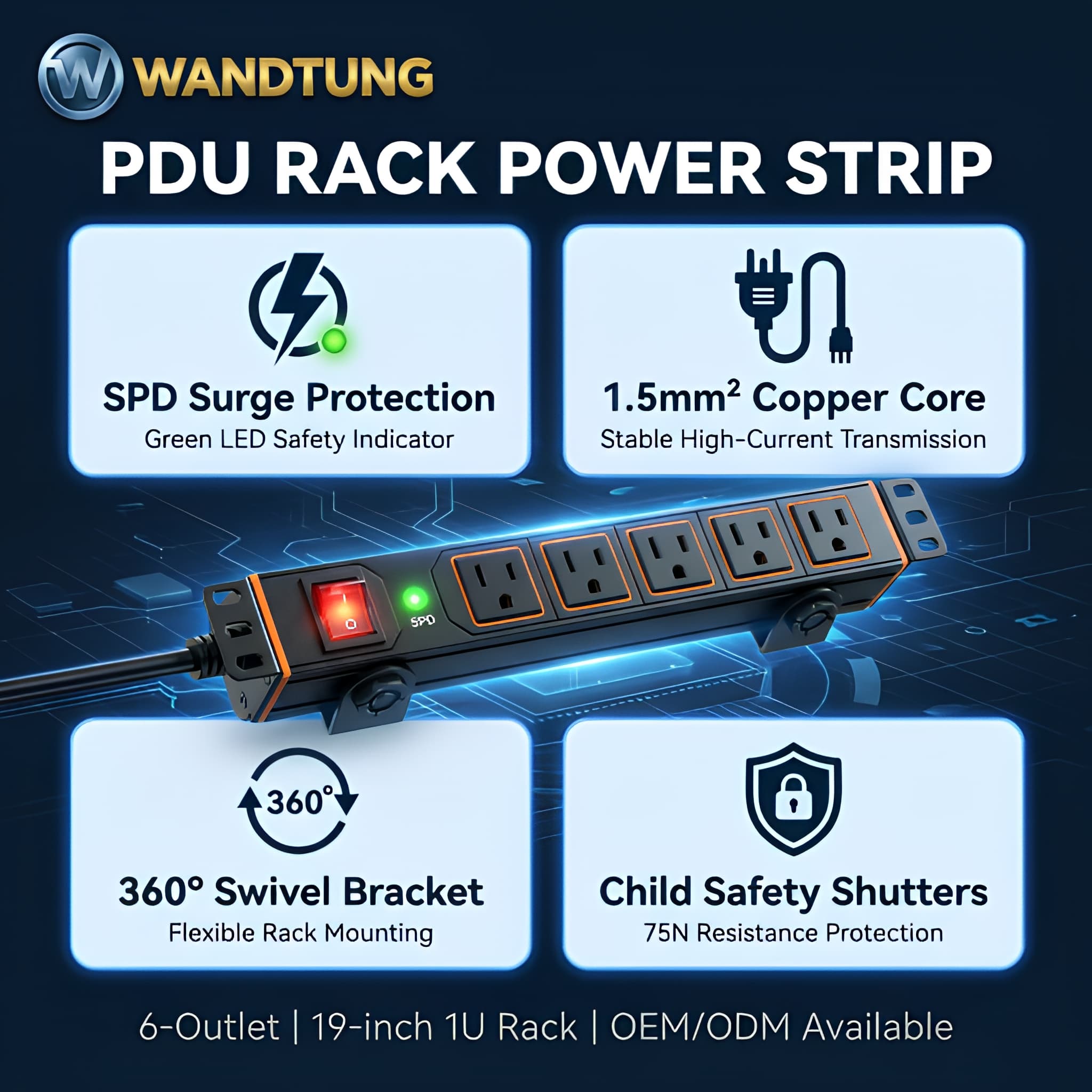

The Wandtung Multi-Function PDU is a 1U, 19-inch rack power strip fitted with six universal multi-standard sockets, a dual power switch and an integrated SPD surge protection module with a green LED safety indicator. A 360° rotatable, tool-free heavy-duty steel mounting bracket allows flexible orientation in the rack, while child-safety shutters rated to 75N add protection in mixed-use environments.
Capabilities
Key Features
- Six universal multi-standard sockets accepting common 2-pin and 3-pin plug types
- Dual power switch with SPD surge protection and green LED safety indicator
- 360° rotatable, tool-free heavy-duty steel mounting bracket
- 1.5mm² copper core cable for stable high-current transmission
- Child safety shutters rated to 75N resistance
- 19-inch 1U rack mount; OEM/ODM available
Specifications
Technical Specifications

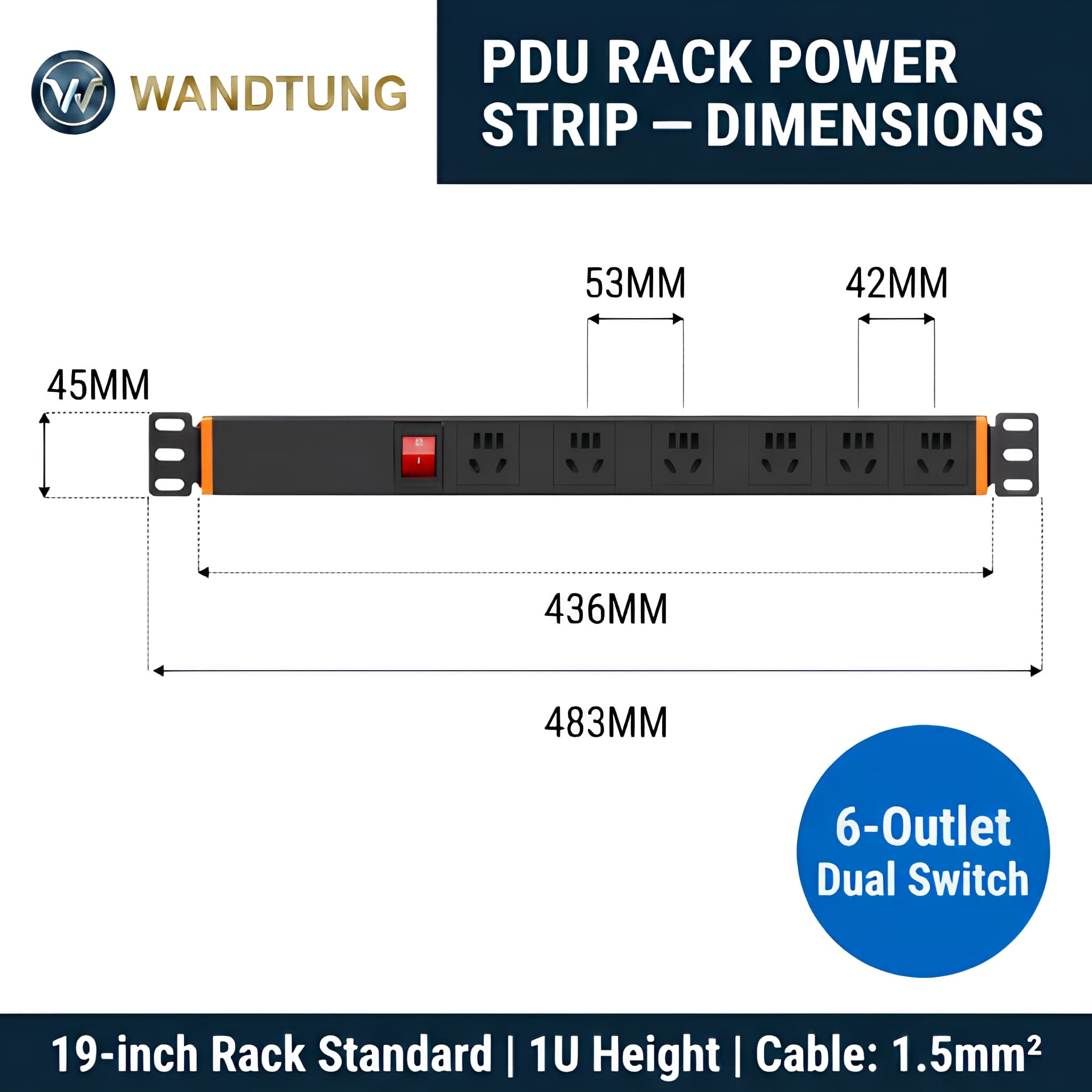

Structure & Dimensions
| Mounting | 19-inch, 1U rack |
|---|---|
| Overall Width | 483 mm |
| Mounting Hole Span | 436 mm |
| Height | 45 mm |
Electrical & Protection
| Output Sockets | 6 × universal multi-standard sockets |
|---|---|
| Switch | Dual power switch, illuminated |
| Surge Protection | Integrated SPD with green LED indicator |
| Cable | 1.5mm² copper core |
| Child Safety | Shutters rated to 75N resistance |
Mounting
| Bracket | 360° rotatable, tool-free installation |
|---|---|
| Bracket Material | Heavy-duty steel |
Deployment
Applications

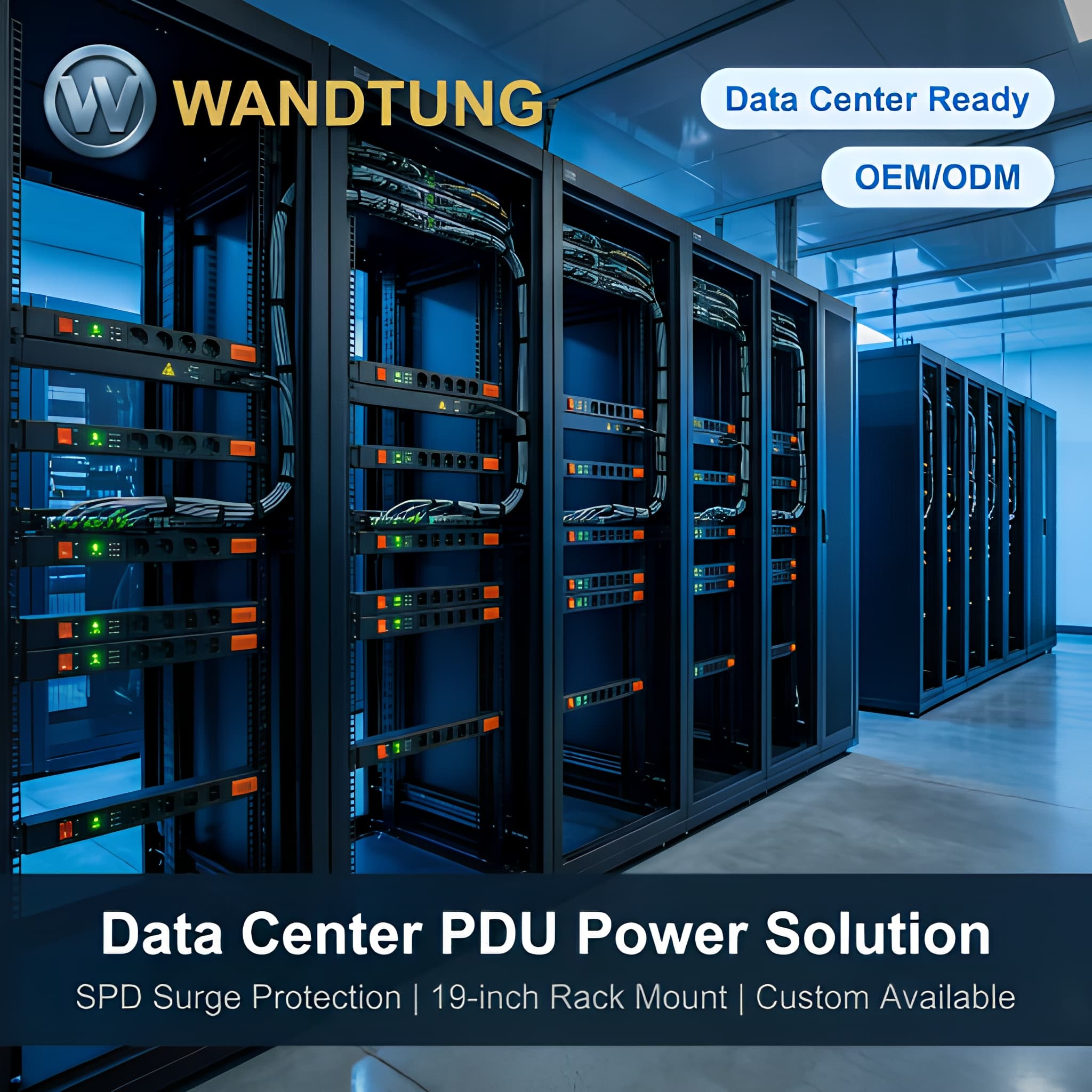

- Data center IT racks
- Multi-region equipment rooms requiring mixed plug compatibility
- Telecom cabinets
- Server rooms and network closets
Configuration
Customization Options
- Outlet count and layout
- Input plug and cable length
- Bracket orientation / mounting kit
- Custom branding / labeling
- OEM / ODM packaging
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
What does 'universal socket' mean on this PDU?
Each outlet on the Multi-Function PDU is designed to accept common 2-pin and 3-pin plug types, so a single unit can serve equipment fitted with different regional power cords without needing adapters.

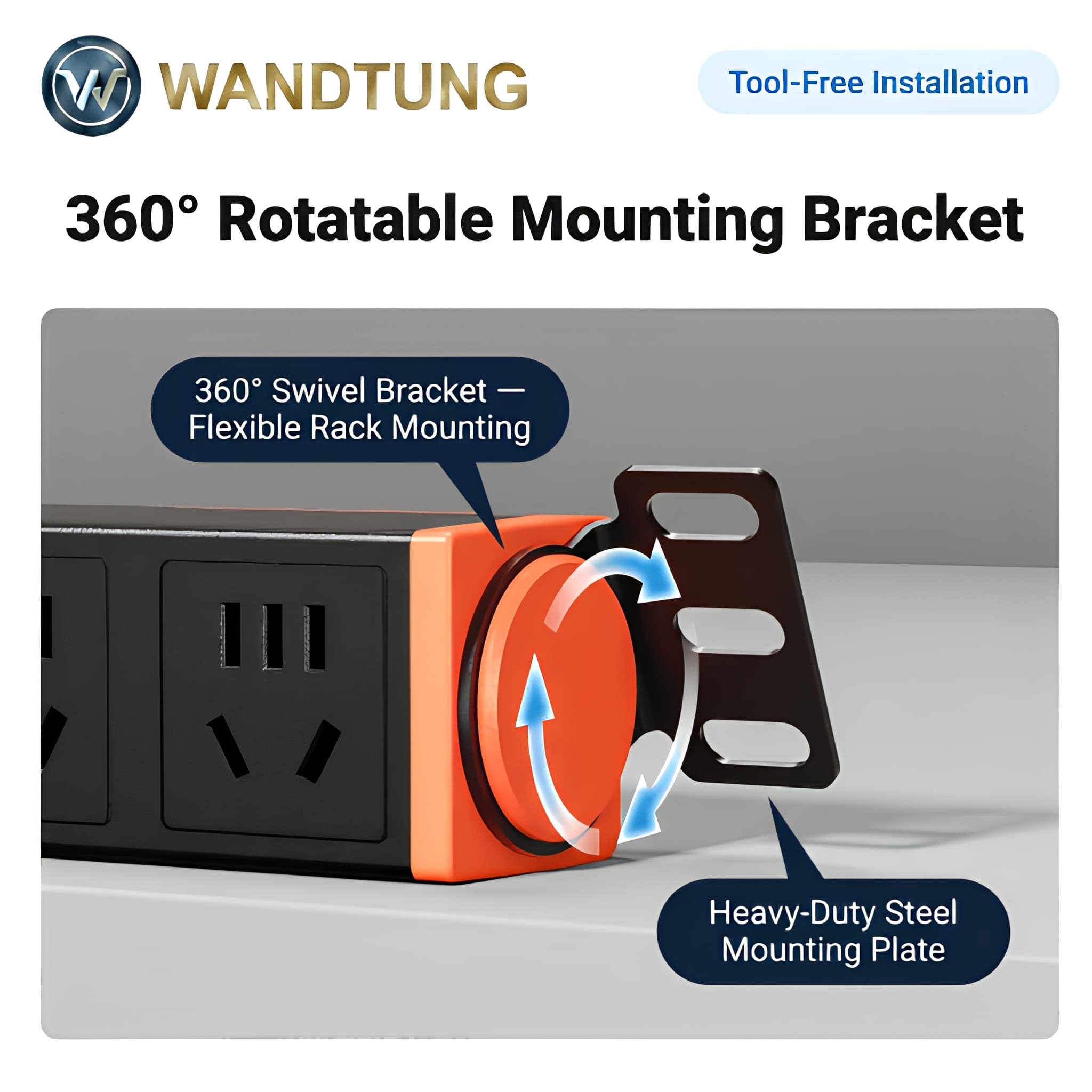

What is the 360° rotatable bracket for?
The heavy-duty steel mounting bracket rotates a full 360° and installs without tools, letting the PDU be oriented to fit different rack layouts and cable routing needs.
Does it include surge protection?
Yes. The unit has an integrated SPD (surge protection device) module with a green LED indicator, alongside a dual power switch and child-safety outlet shutters rated to 75N.
