Network & Server Cabinets
Network Cabinet
19-inch floor-standing server cabinet with 2.0mm heavy-duty posts, up to 2000kg static load.
Overview
Product Overview

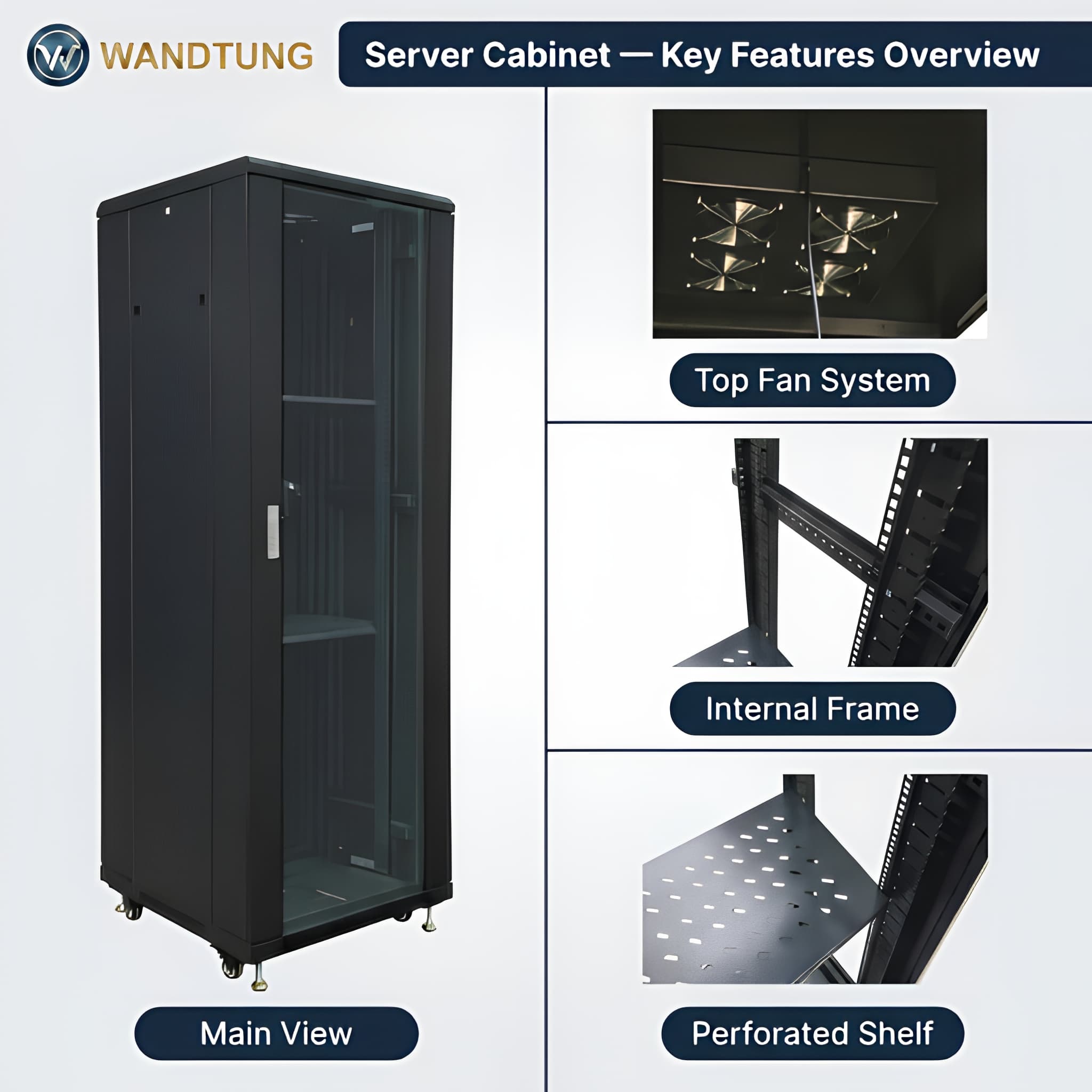

The Wandtung Network Cabinet is a 19-inch floor-standing enclosure for switches, patch panels, servers and network equipment, built with 2.0mm heavy-duty SPCC cold-rolled steel mounting posts, a top fan system, perforated shelves and a lockable tempered-glass door. Available in 18U/22U/32U/42U heights with 600/800/1000mm depth options, the reinforced internal frame supports a static load of 600–2000kg depending on configuration.
Capabilities
Key Features
- 18U / 22U / 32U / 42U heights available

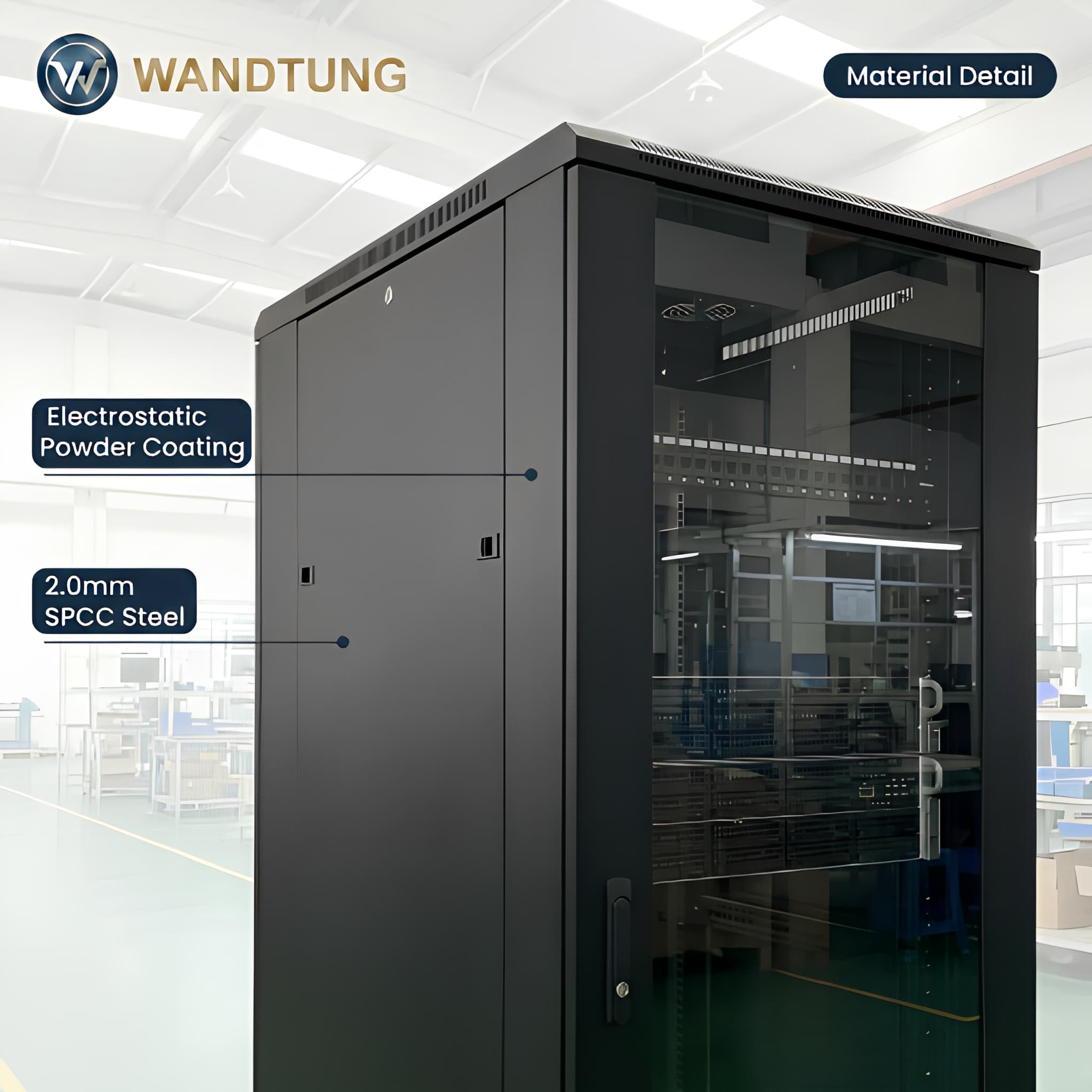

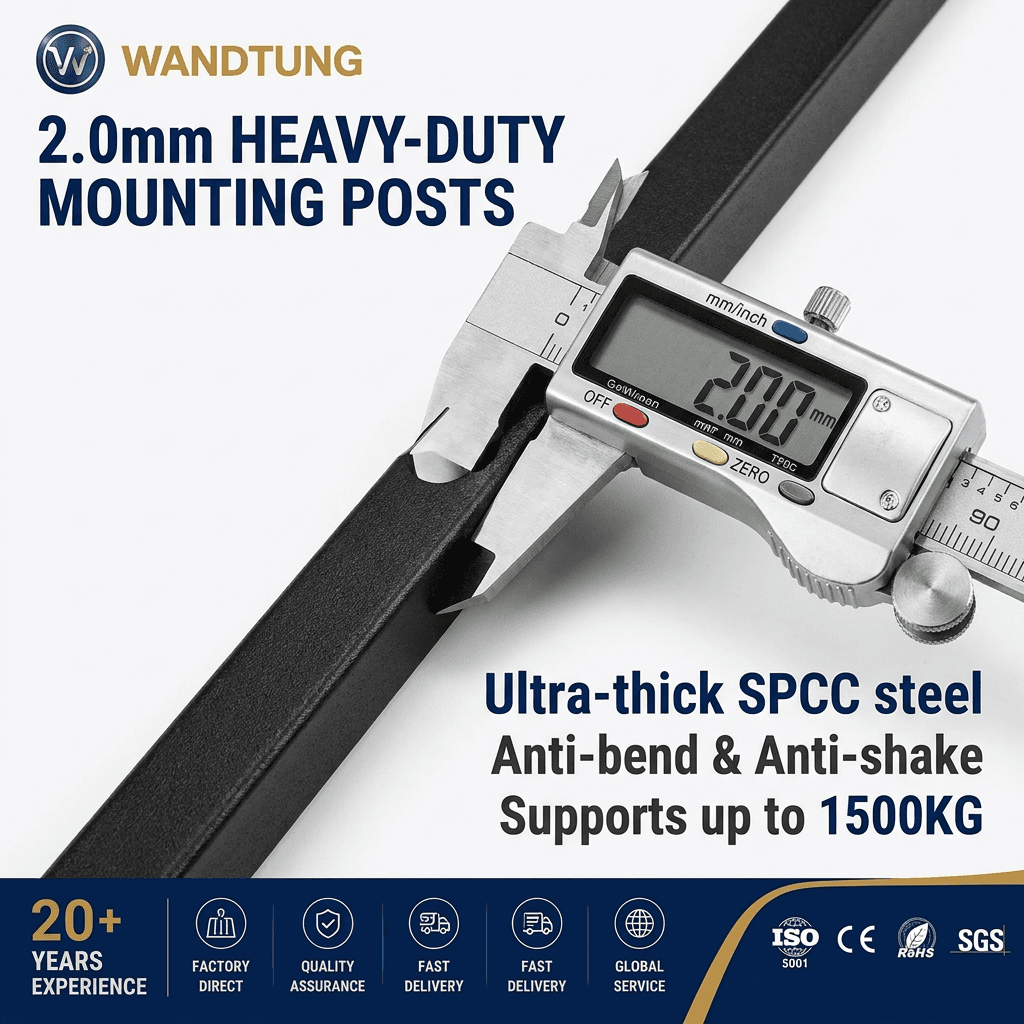

- 2.0mm heavy-duty SPCC cold-rolled steel mounting posts, supports up to 1500kg on the frame

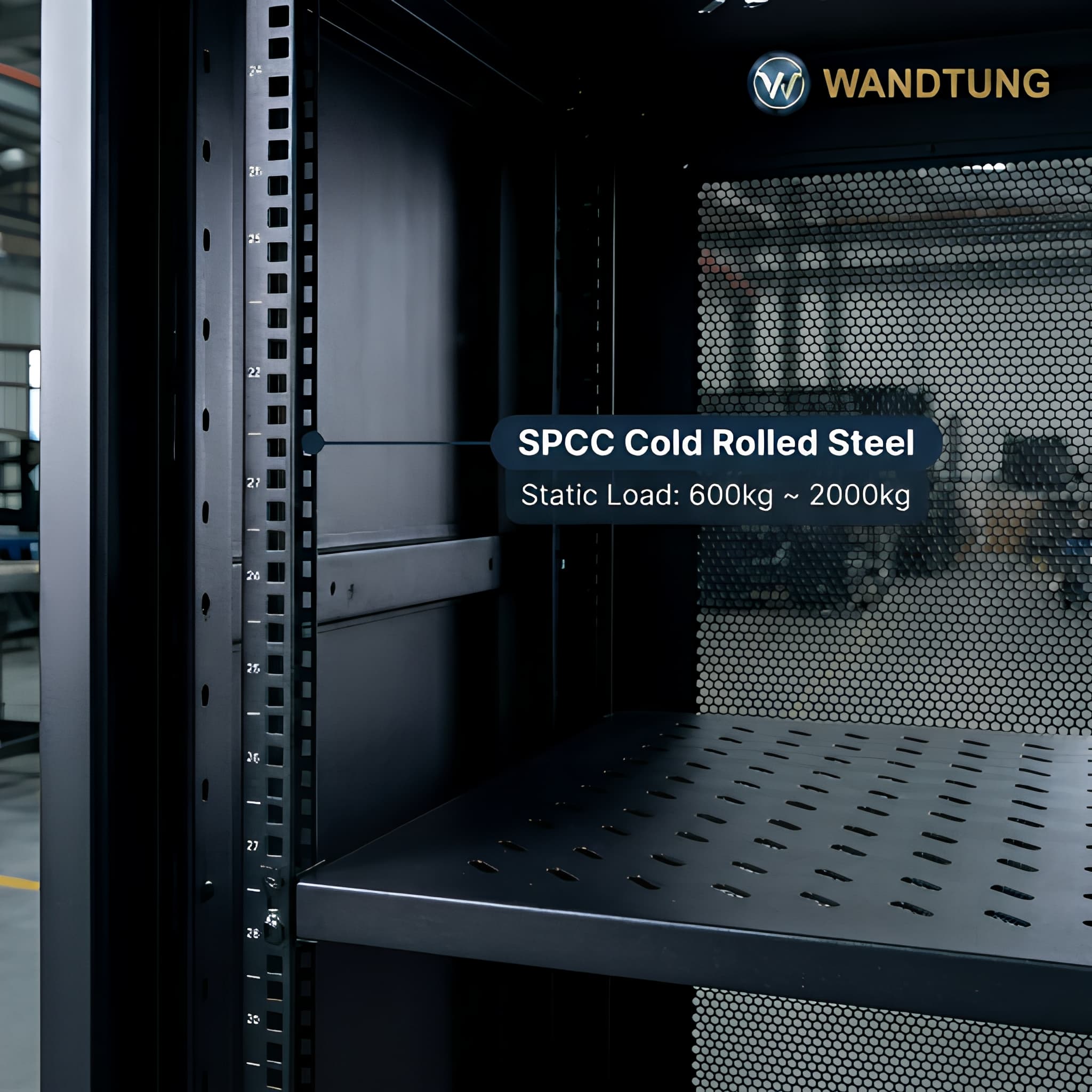

- Static load rating 600–2000kg depending on configuration

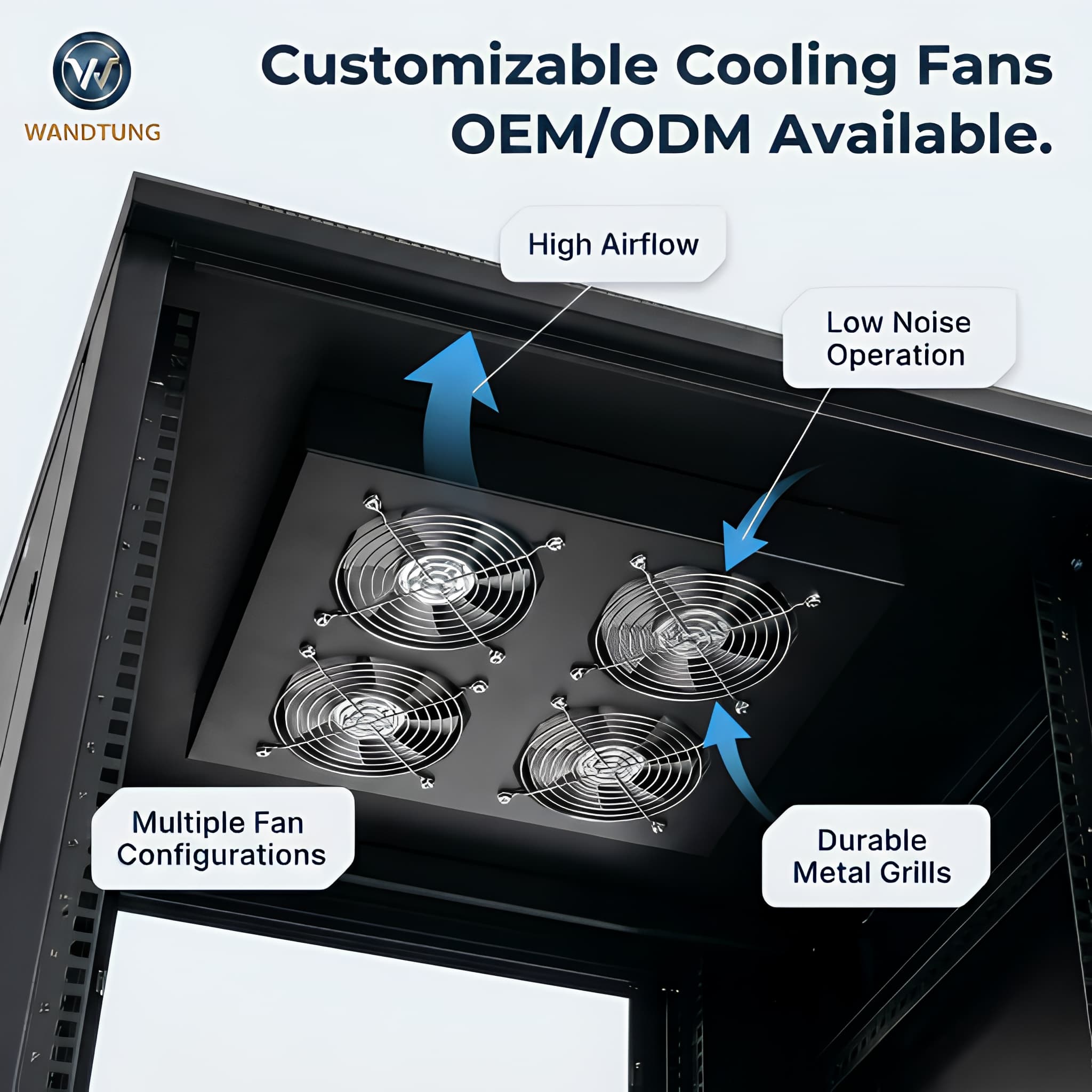

- Top fan system for active heat exhaust

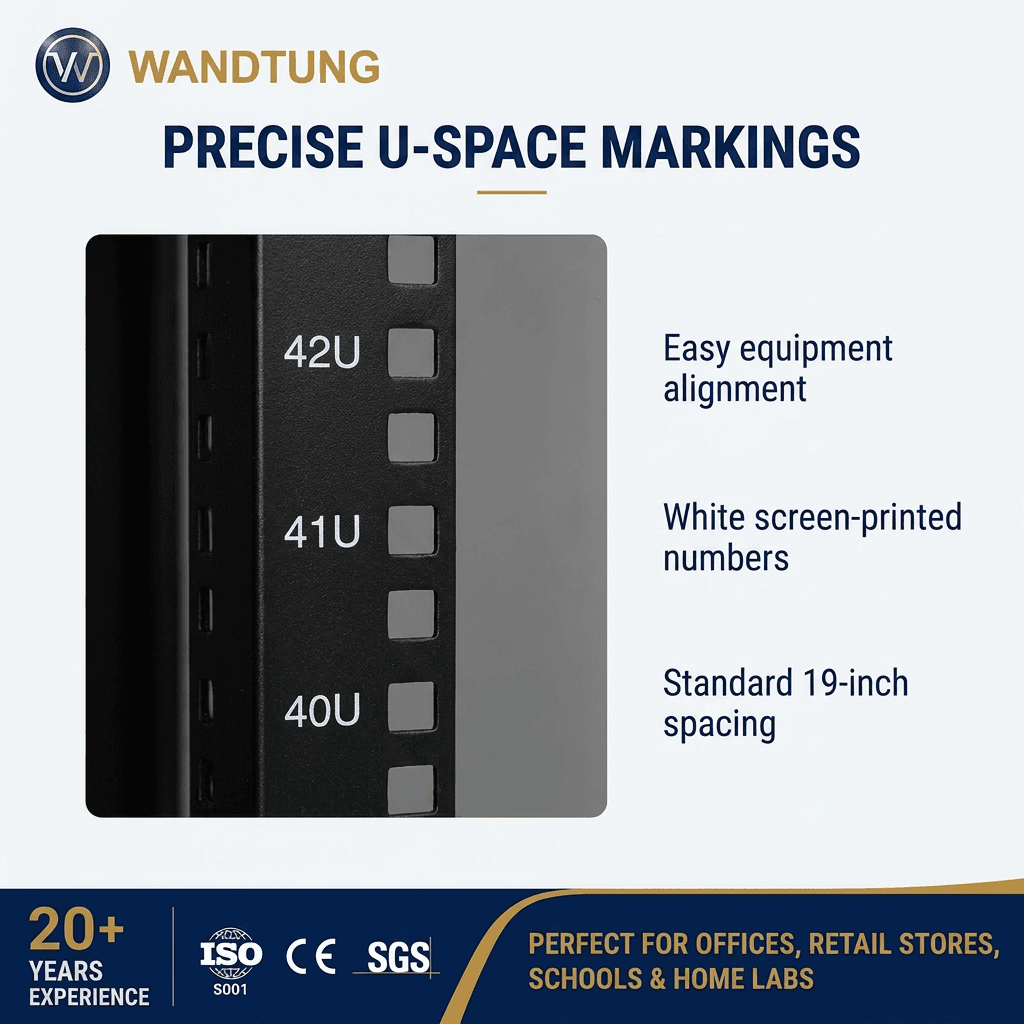

- 19-inch EIA-standard mounting rails with U-position scale markings, front and rear
- Lockable tempered-glass front door with perforated rear/side panels for airflow
- Perforated, adjustable-position shelves

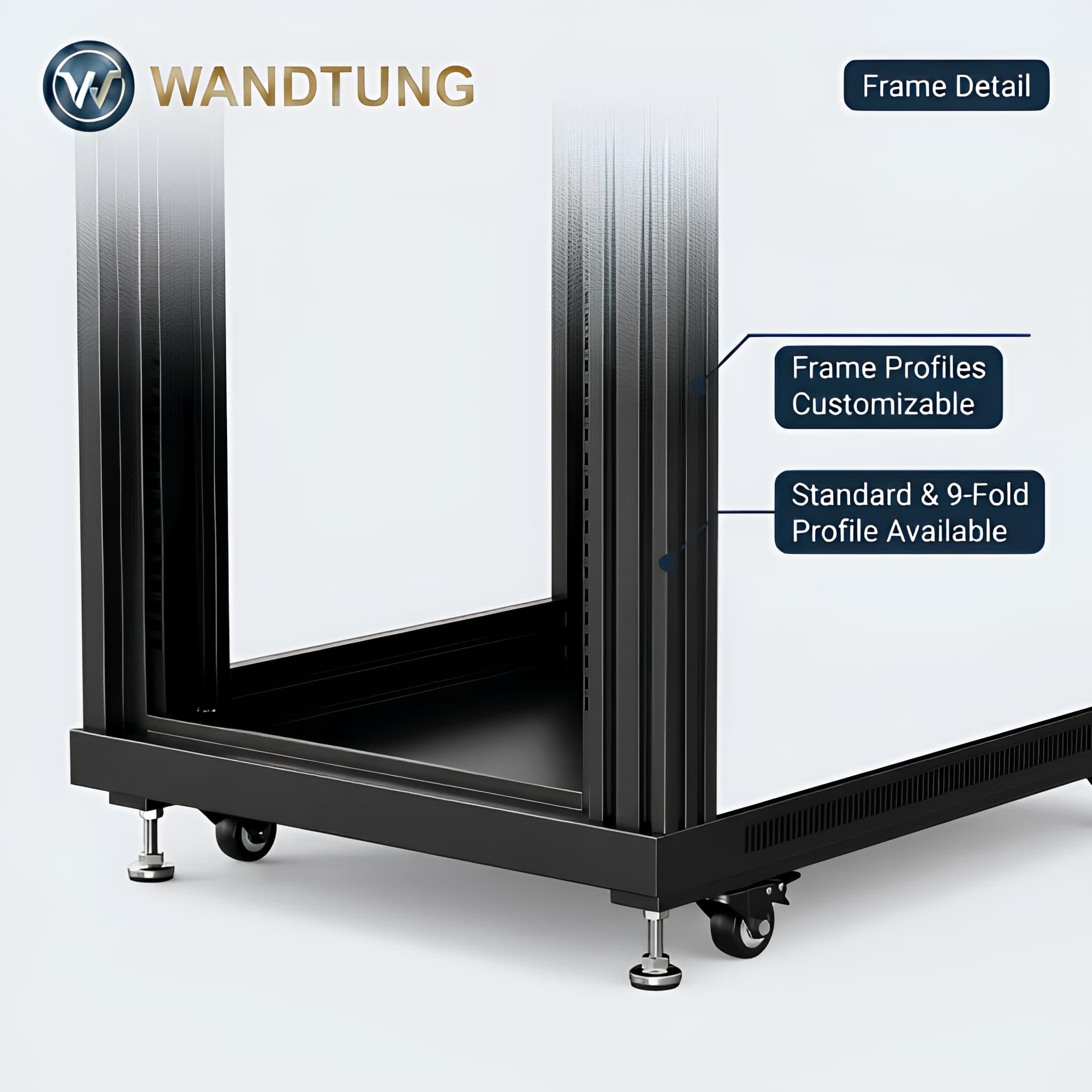

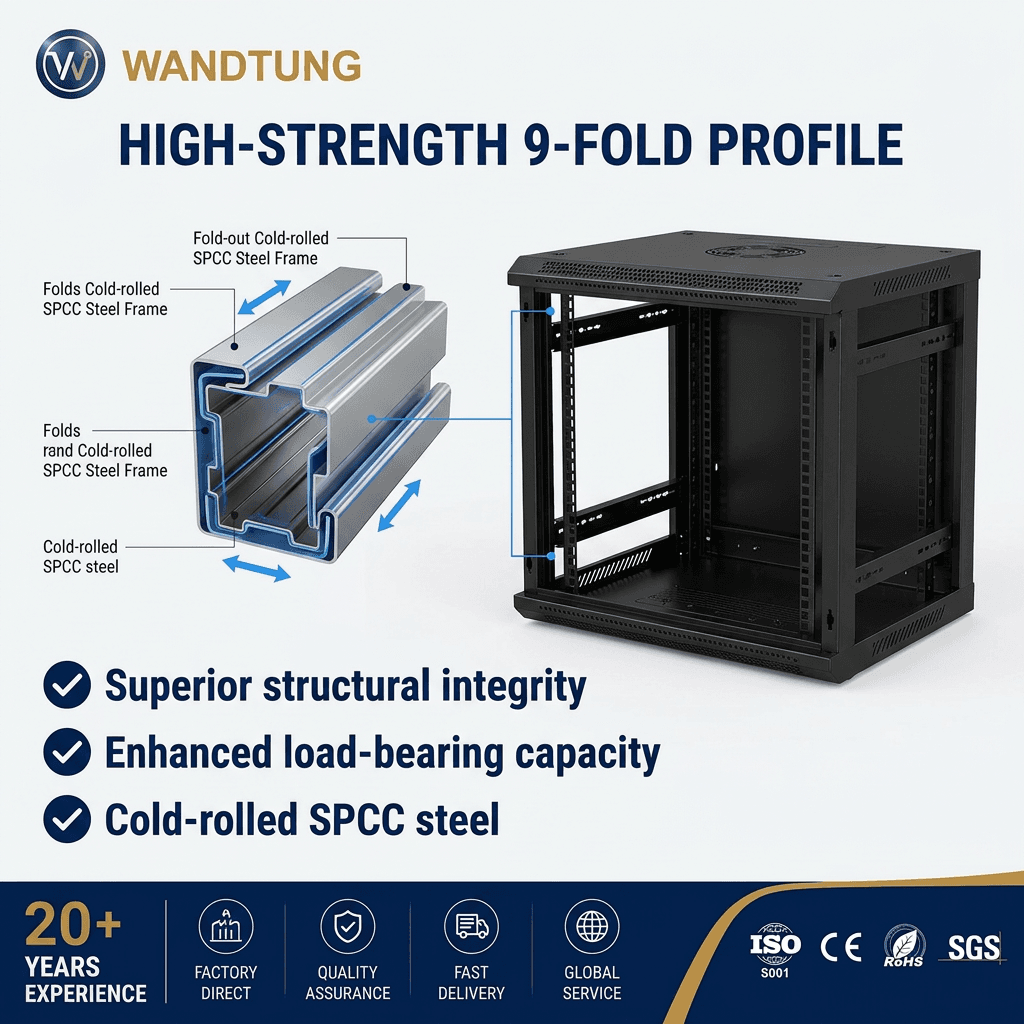

- Nine-fold (9-bend) profile frame construction for added rigidity

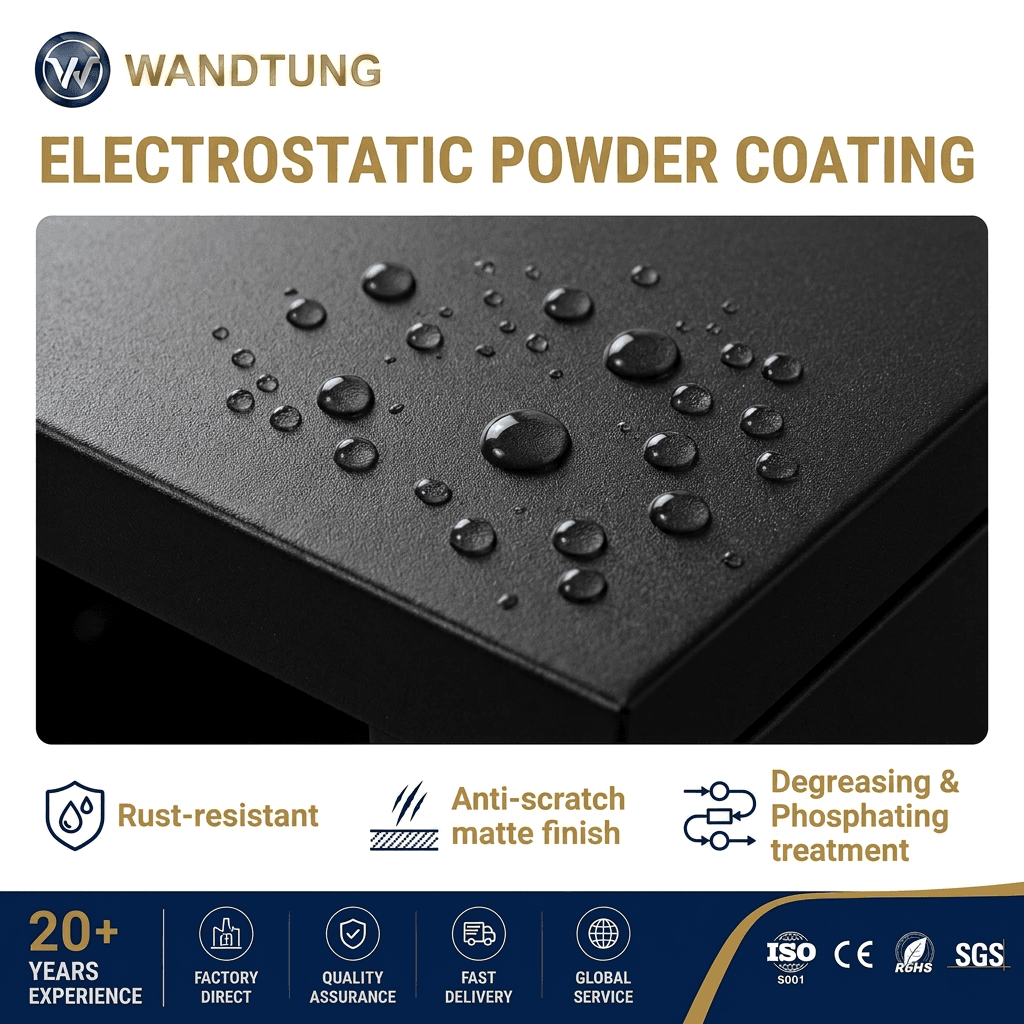

- Electrostatic powder-coating process for a durable, even finish

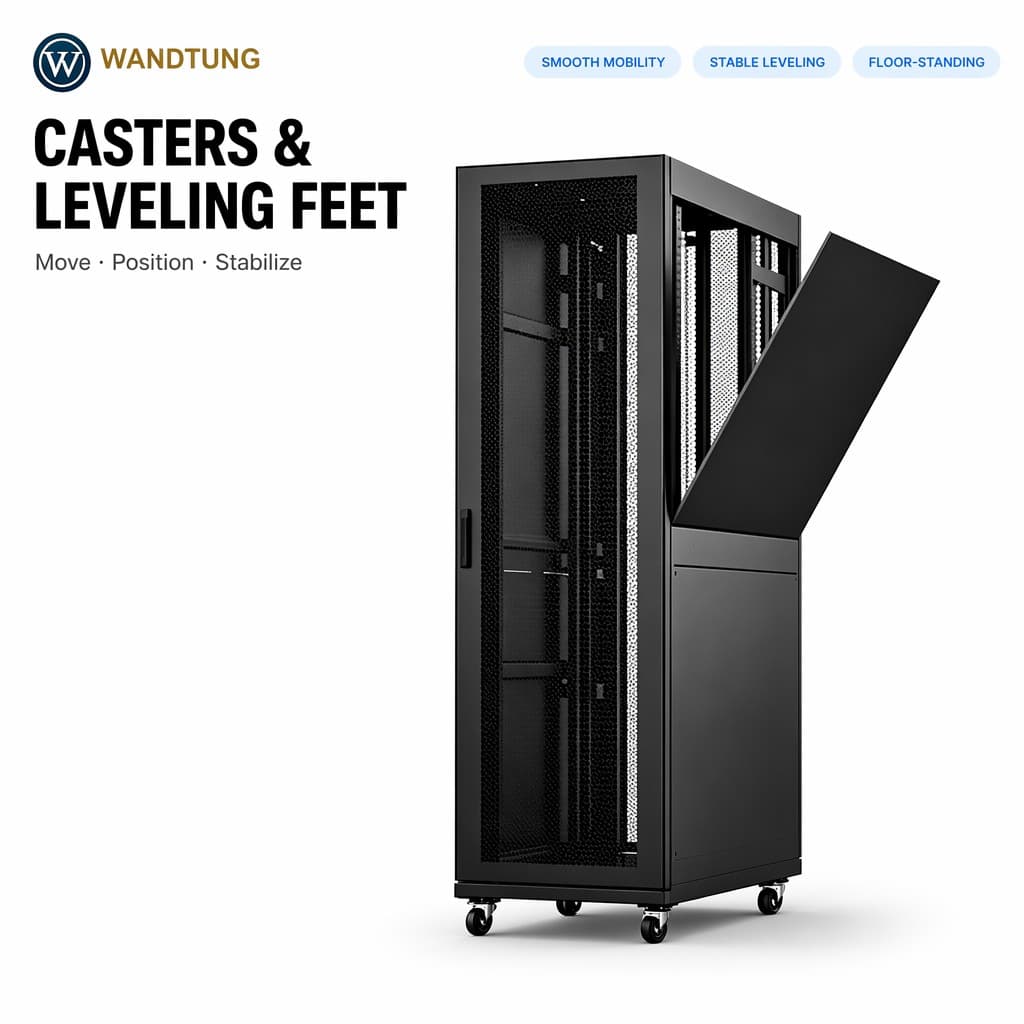

- Castors with leveling feet for mobility and stable leveling
Specifications
Technical Specifications
Structure & Dimensions
| Rack Units | 18U / 22U / 32U / 42U |
|---|---|
| Width | 600 mm / 800 mm |
| Depth | 600 / 800 / 1000 mm |
| Load Capacity | 600 – 2000 kg (static, configuration dependent) |
| Mounting Post | 2.0mm heavy-duty SPCC steel, supports up to 1500kg |
Construction
| Material | Cold-rolled steel (SPCC), nine-fold profile frame |
|---|---|
| Steel Thickness | 1.2 – 2.0 mm (frame dependent) |
| Cooling | Top fan system, perforated door/side panels |
| IP Rating | IP20 (indoor); IP54/IP55 outdoor variant available |
| Finish | Electrostatic powder-coated, RAL color options |
| Mobility | Castors with adjustable leveling feet |
Deployment
Applications
- Telecom equipment rooms
- Network / IT closets
- Data center support infrastructure
Configuration
Customization Options
- Height / width / depth
- Door type (perforated, mesh, glass, solid)
- Side panel (removable, lockable)
- Cable management accessories
- Color / branding
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
A network cabinet is a 19-inch standard enclosure that houses switches, patch panels, routers and other network equipment, providing physical security, organized cable management and controlled airflow for IT closets and equipment rooms.
