Solar Ground Mounting System
Aluminum alloy rail and hot-dip galvanized steel post ground-mount racking, 10kW to 10MW.
Overview
Product Overview

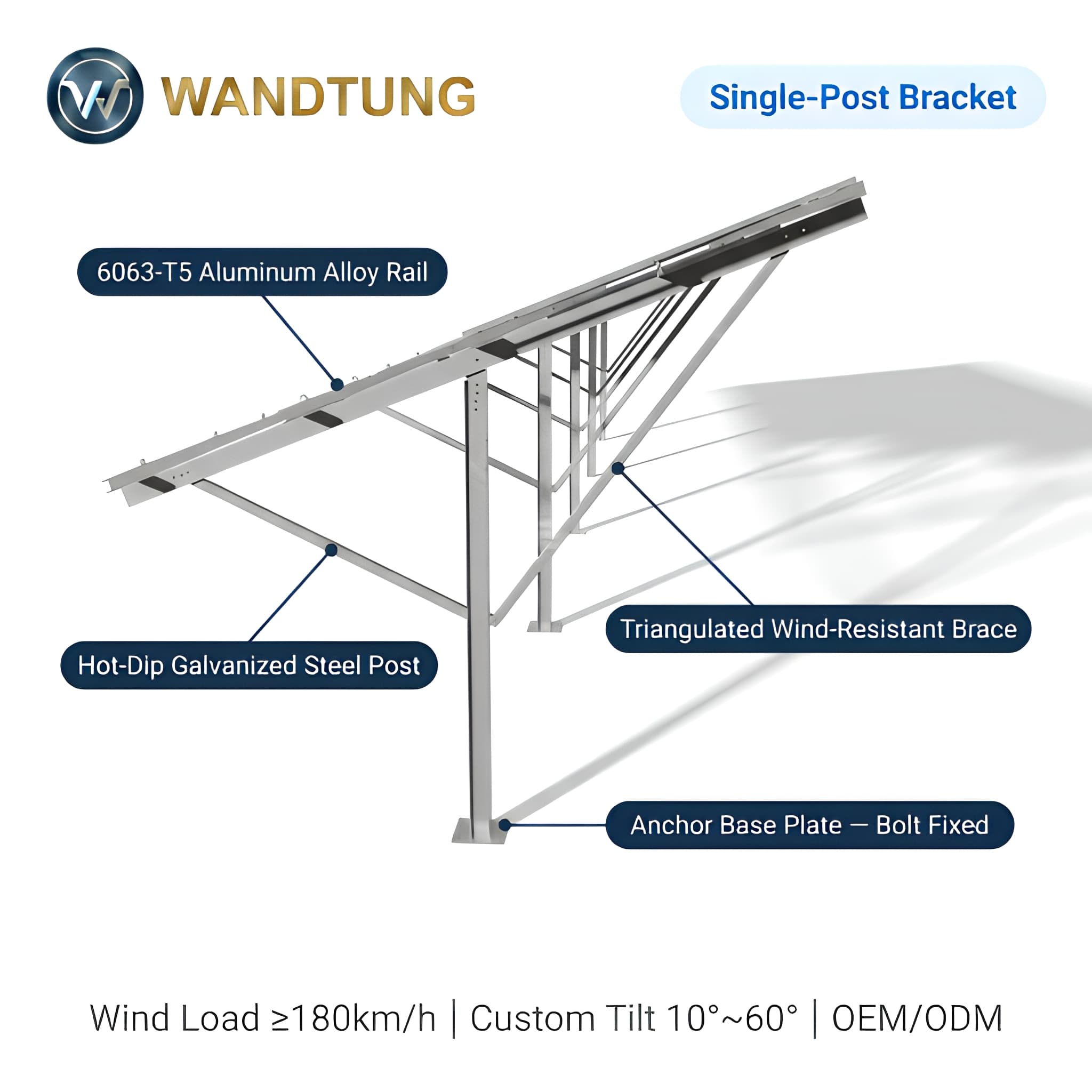

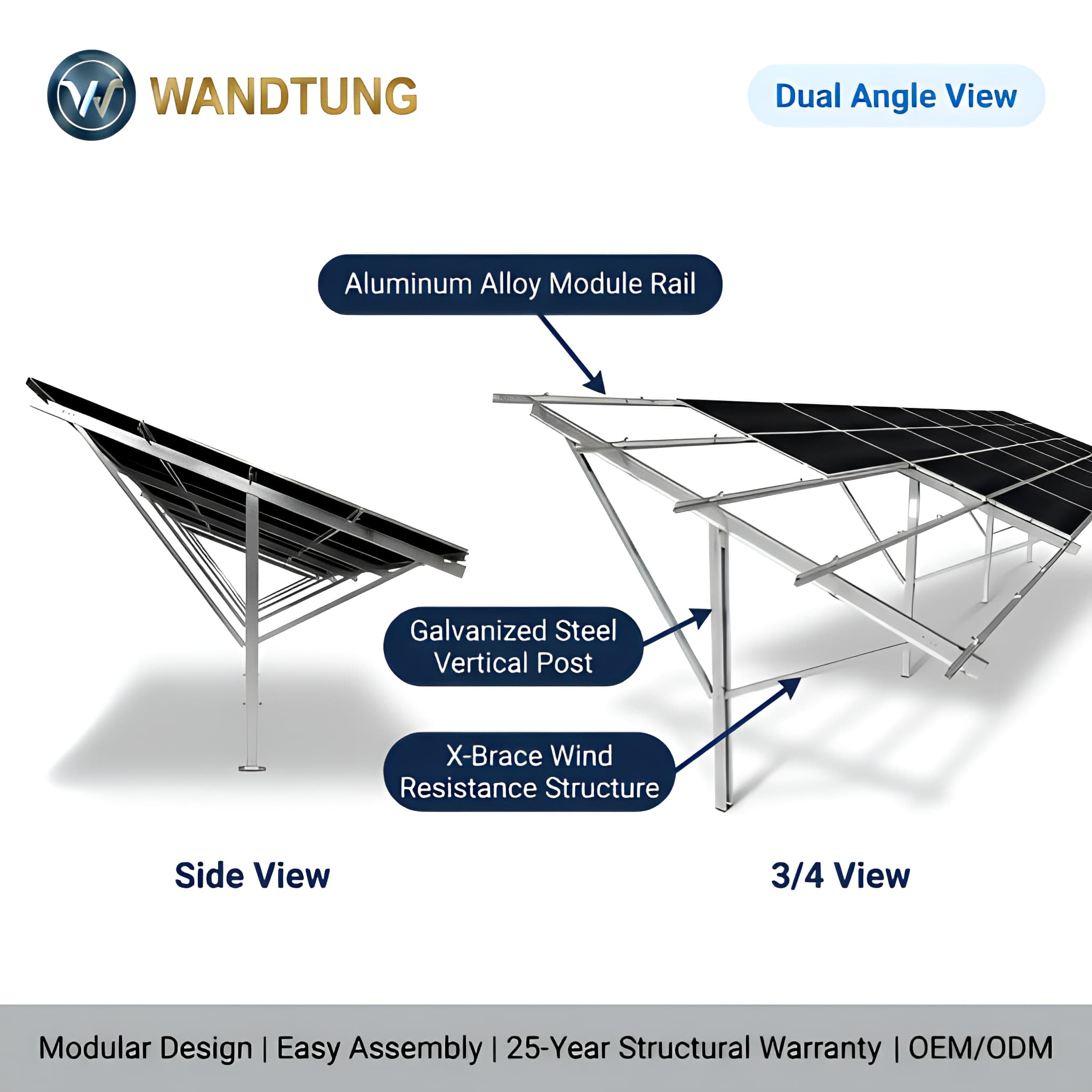

The Wandtung Solar Ground Mounting System pairs 6063-T5 aluminum alloy module rails with hot-dip galvanized steel posts and a triangulated wind-resistant brace, giving ground-mount solar arrays a bolt-fixed anchor base, custom tilt angle from 10° to 60°, and a rated wind load of ≥180km/h. The modular design scales from a single-post bracket for small arrays up to utility-scale layouts from 10kW to 10MW, with fast on-site assembly and a 25-year structural warranty.
Capabilities
Key Features
- 6063-T5 aluminum alloy module rail
- Hot-dip galvanized steel vertical post
- Triangulated / X-brace wind-resistant structure
- Bolt-fixed anchor base plate
- Custom tilt angle, 10° – 60°
- Rated wind load ≥180km/h
- Modular design for fast on-site assembly
- 25-year structural warranty
Specifications
Technical Specifications
Structure
| Rail Material | 6063-T5 aluminum alloy |
|---|---|
| Post Material | Hot-dip galvanized steel |
| Bracing | Triangulated / X-brace wind-resistant structure |
| Foundation | Bolt-fixed anchor base plate |
Performance & Scale
| Tilt Angle | Custom, 10° – 60° |
|---|---|
| Wind Load Rating | ≥180km/h |
| System Scale | 10kW – 10MW+ |
| Structural Warranty | 25 years |
Deployment
Applications

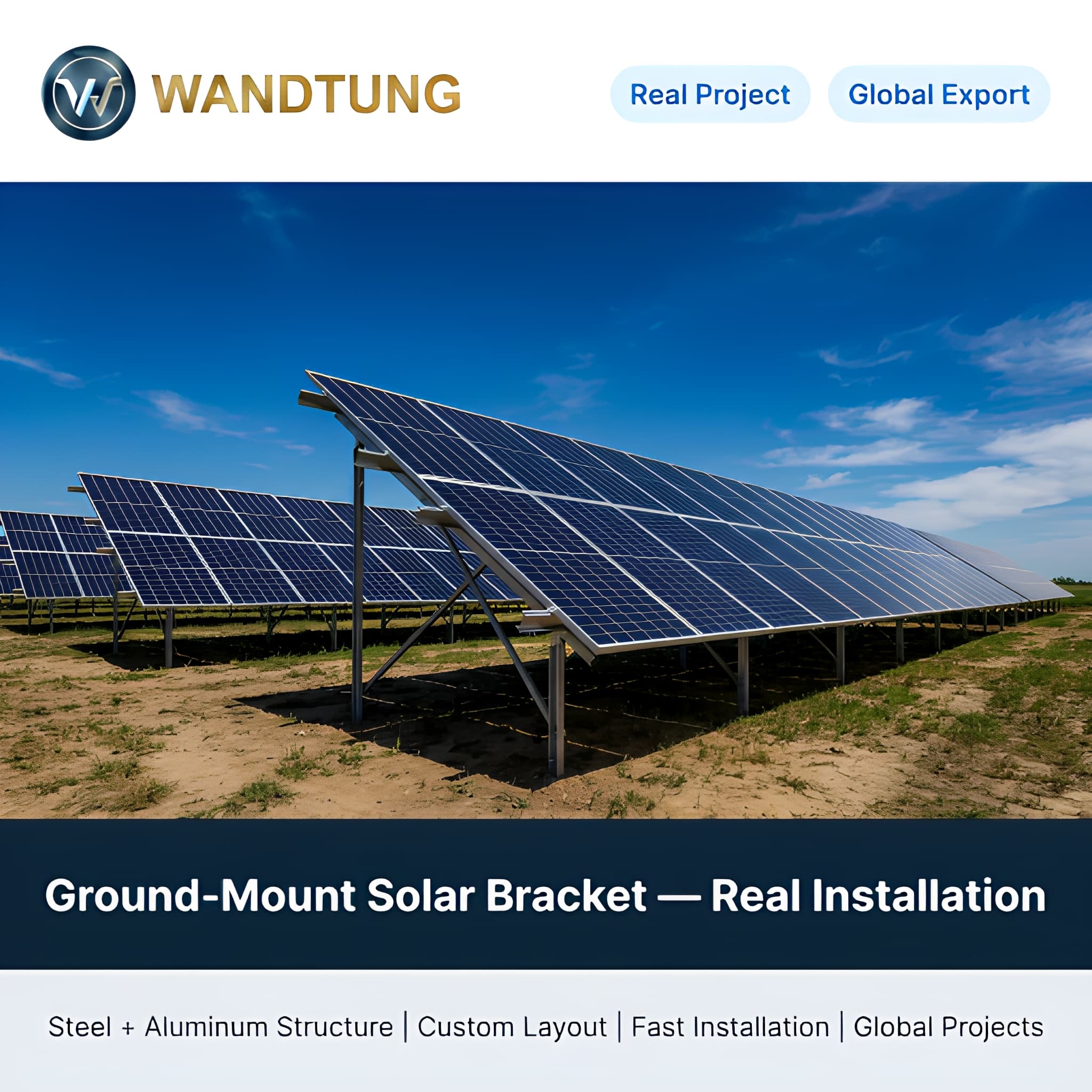

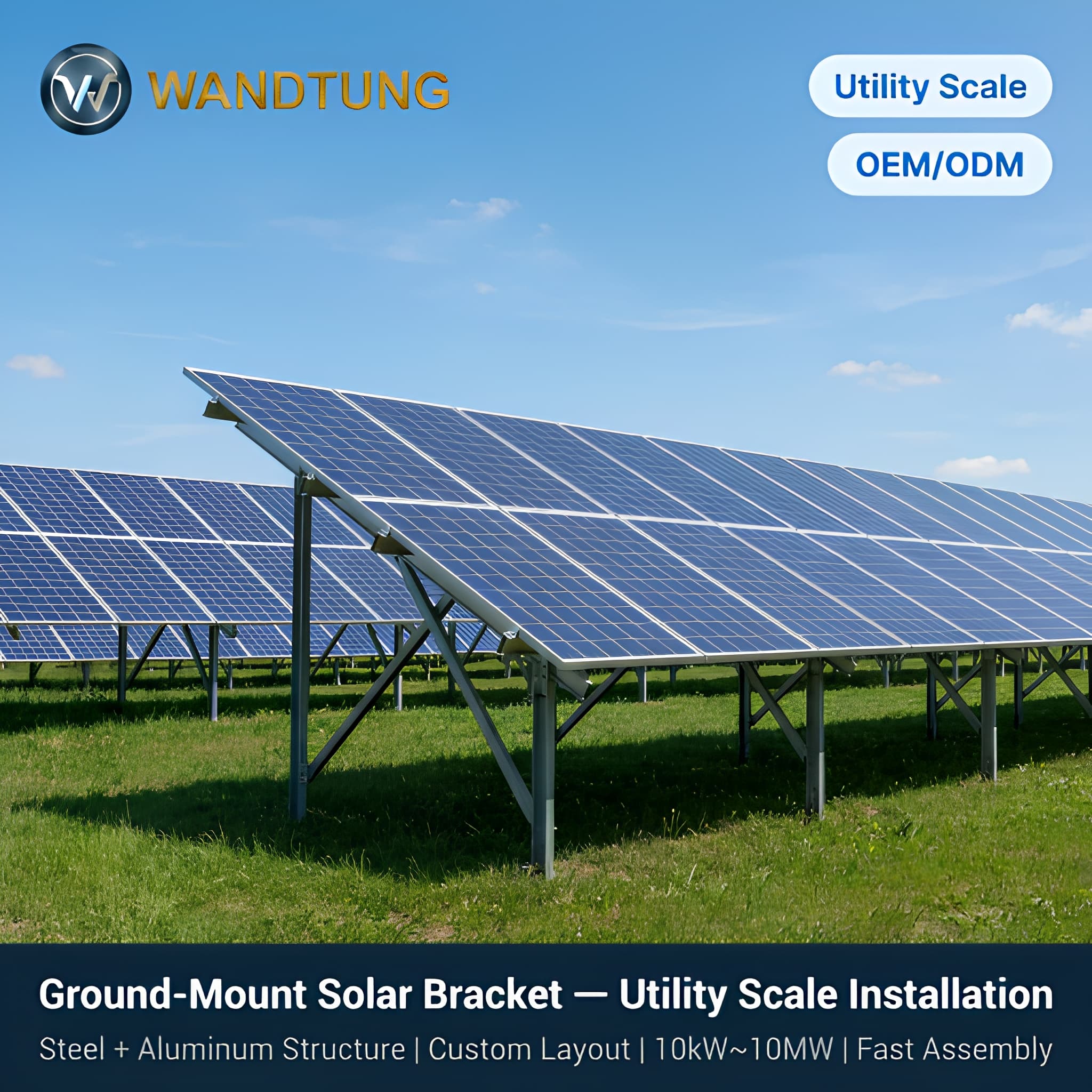

- Utility-scale ground-mount solar farms
- Commercial and industrial ground-mount arrays
- Agrivoltaic / farmland solar installations
- Off-grid and remote-site solar arrays
Configuration
Customization Options
- Tilt angle
- Post height / row spacing
- Single-post or multi-post layout
- Regional wind/snow load design
- OEM/ODM
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
Can the mounting system be customized for local wind and snow loads?
Yes. Post spacing, bracing and foundation sizing are engineered per project site conditions, and the standard structure is rated for wind loads of ≥180km/h — higher-load regional designs are available on request.
What tilt angle range does the system support?
The bracket system supports a custom tilt angle from 10° to 60°, set at installation to match the project's latitude and energy yield target.
What project scale does this mounting system suit?
The modular single-post and multi-post bracket design scales from small 10kW arrays up to utility-scale ground-mount solar farms of 10MW and above, using the same rail and post components.
