Data Center Flooring
Anti-Static Raised Floor
Raised access flooring for airflow management and cable routing in data center white space.
Overview
Product Overview

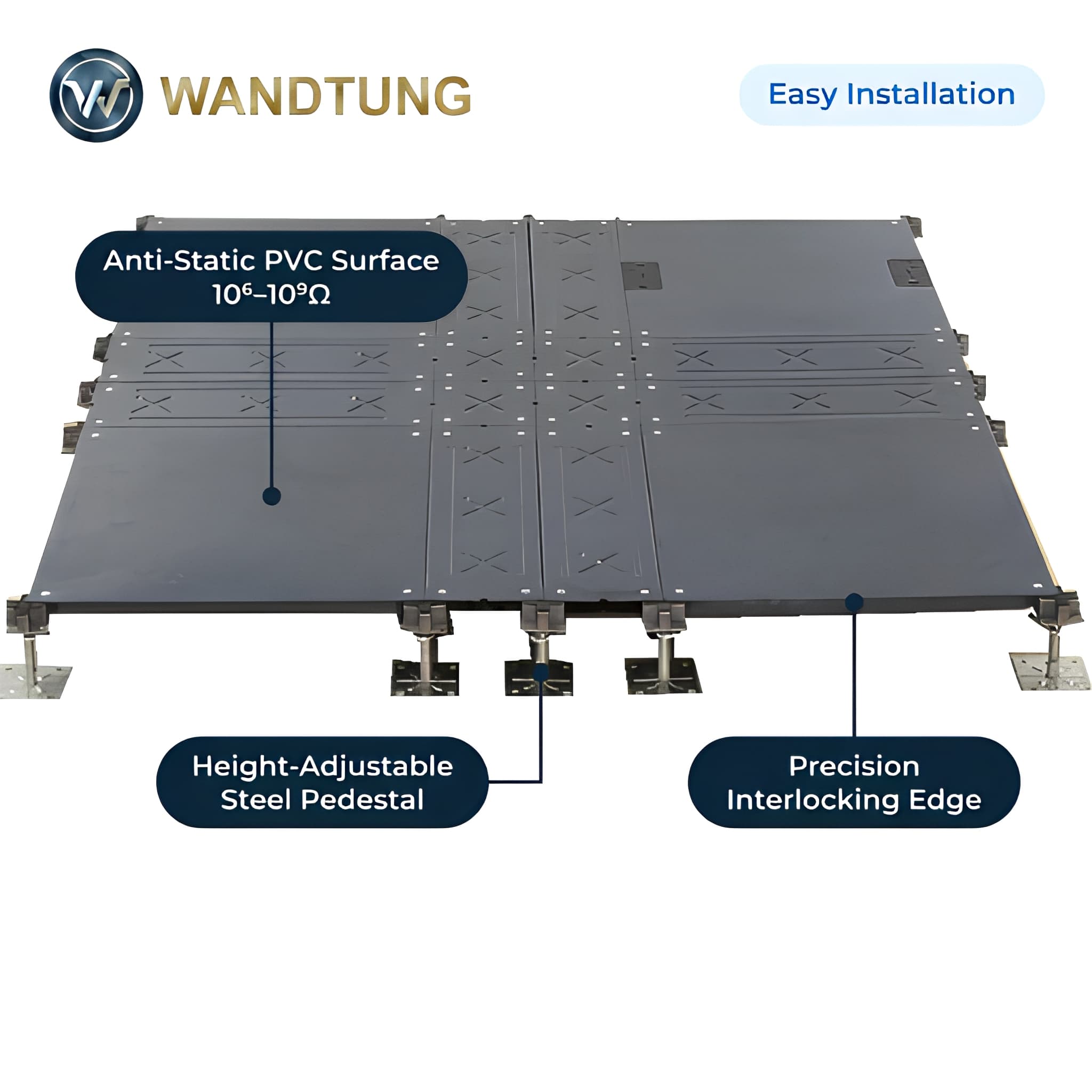

Wandtung anti-static raised floor panels provide an elevated, load-rated deck for underfloor air distribution and cable routing, with an anti-static PVC surface finish (10^6–10^9 Ω) suited to data center, server room and office environments. Each panel uses a 3-layer construction — SPCC cold-rolled steel surface, deep-drawn coil steel dimple base and a high-density foamed cement core — joined with a precision interlocking cornerlock system, on a height-adjustable steel pedestal (100–500mm).
Capabilities
Key Features
- Anti-static PVC surface, 10^6–10^9 Ω surface resistance

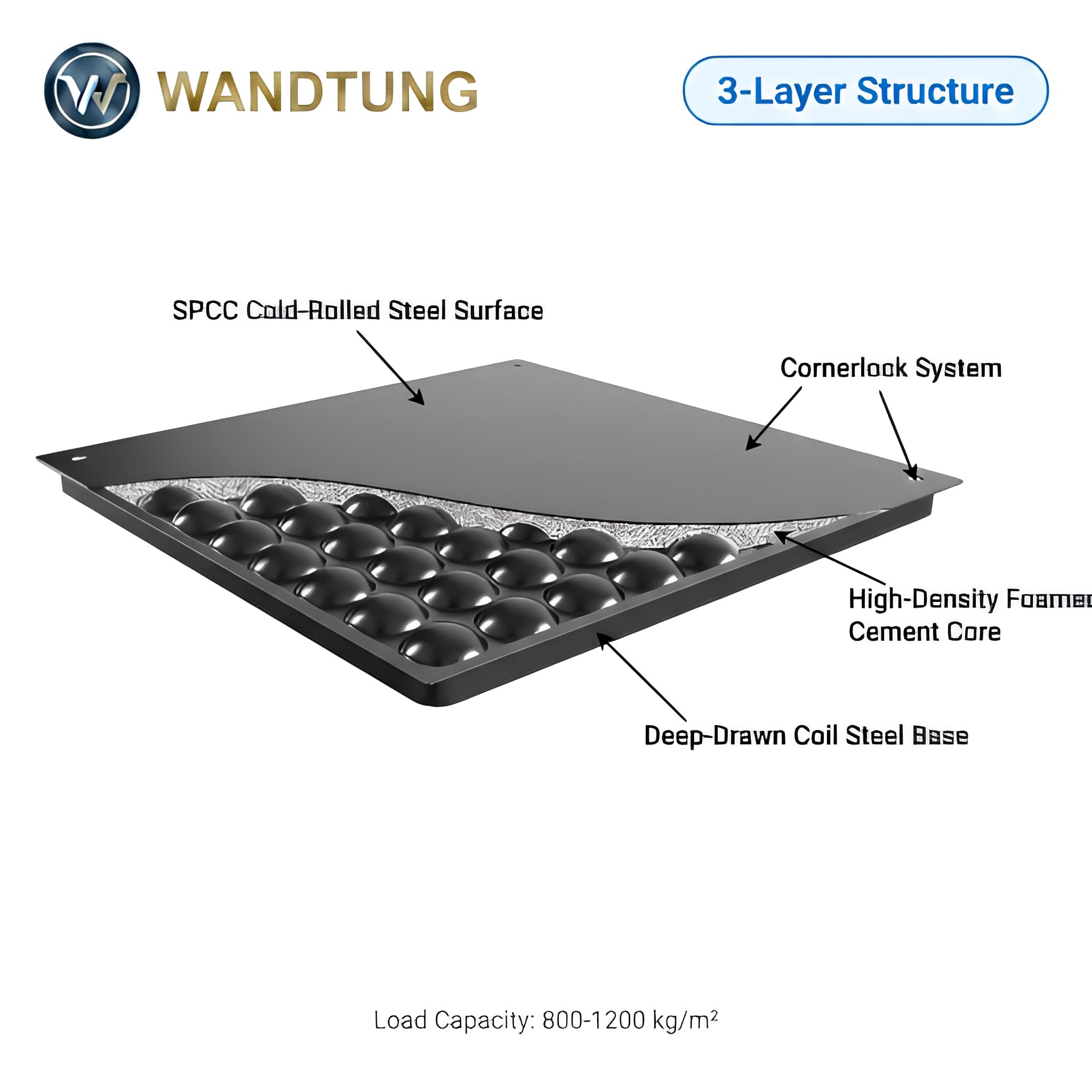

- 3-layer construction: SPCC cold-rolled steel surface, deep-drawn coil steel dimple base, high-density foamed cement core
- Precision interlocking / cornerlock edge system for a tight, stable joint
- Height-adjustable steel pedestal, 100–500mm
- Easy, tool-light installation
- CE and ISO certified, OEM/ODM available
Specifications
Technical Specifications
Panel Specification
| Panel Size | 600 x 600 mm (standard), custom sizes available |
|---|---|
| Construction | 3-layer: steel surface, deep-drawn steel base, foamed cement core |
| Load Rating | 800–1200 kg/m² (model dependent) |
| Surface Resistance | 10^6–10^9 Ω (anti-static) |

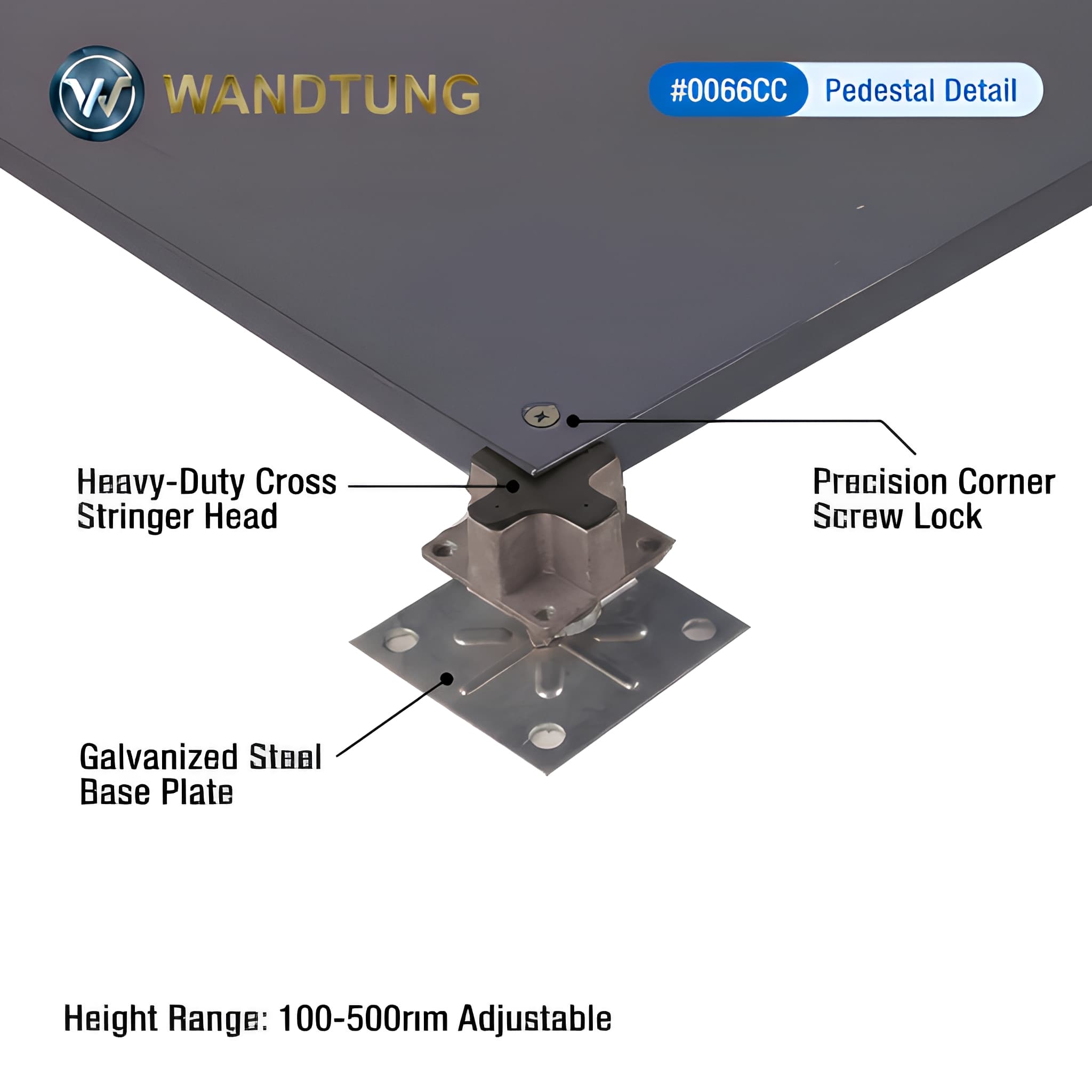

Pedestal & Frame
| Pedestal Material | Steel, height-adjustable |
|---|---|
| Height Range | 100–500mm, adjustable |
| Edge System | Precision interlocking / cornerlock |
Deployment
Applications
- Data center white space
- Control rooms
- Clean rooms
- Server rooms
Configuration
Customization Options
- Panel core type
- Finish
- Solid or ventilated panel
- Pedestal height
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
Anti-static raised flooring creates a void beneath the data hall floor for underfloor air distribution and cable routing, while its static-dissipative surface reduces the risk of electrostatic discharge damaging sensitive IT equipment.
Interested in Anti-Static Raised Floor?
Get a datasheet, technical consultation, or a project-specific quote from our engineering team.
