Data Center Flooring
Glass Anti-Static Raised Floor
Transparent tempered glass access floor combining anti-static protection with a decorative, see-through finish.
Overview
Product Overview

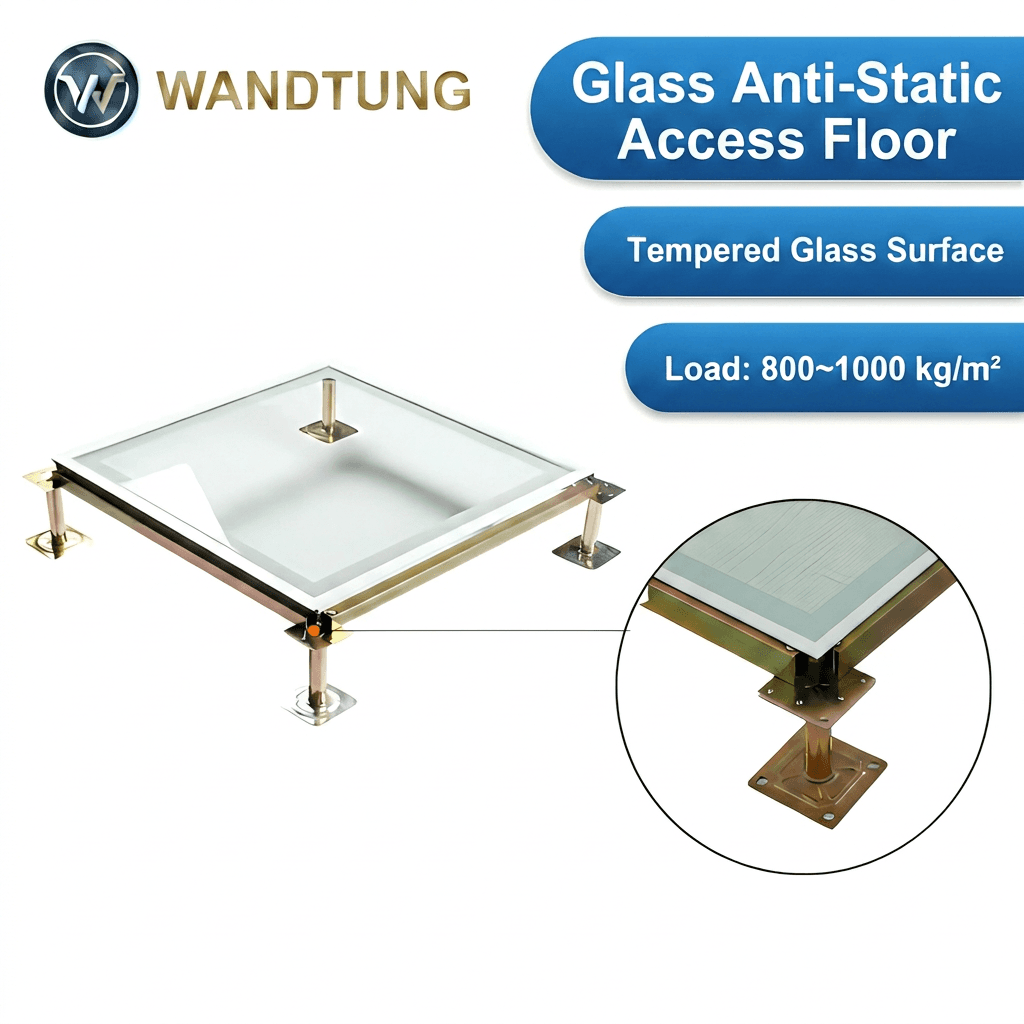

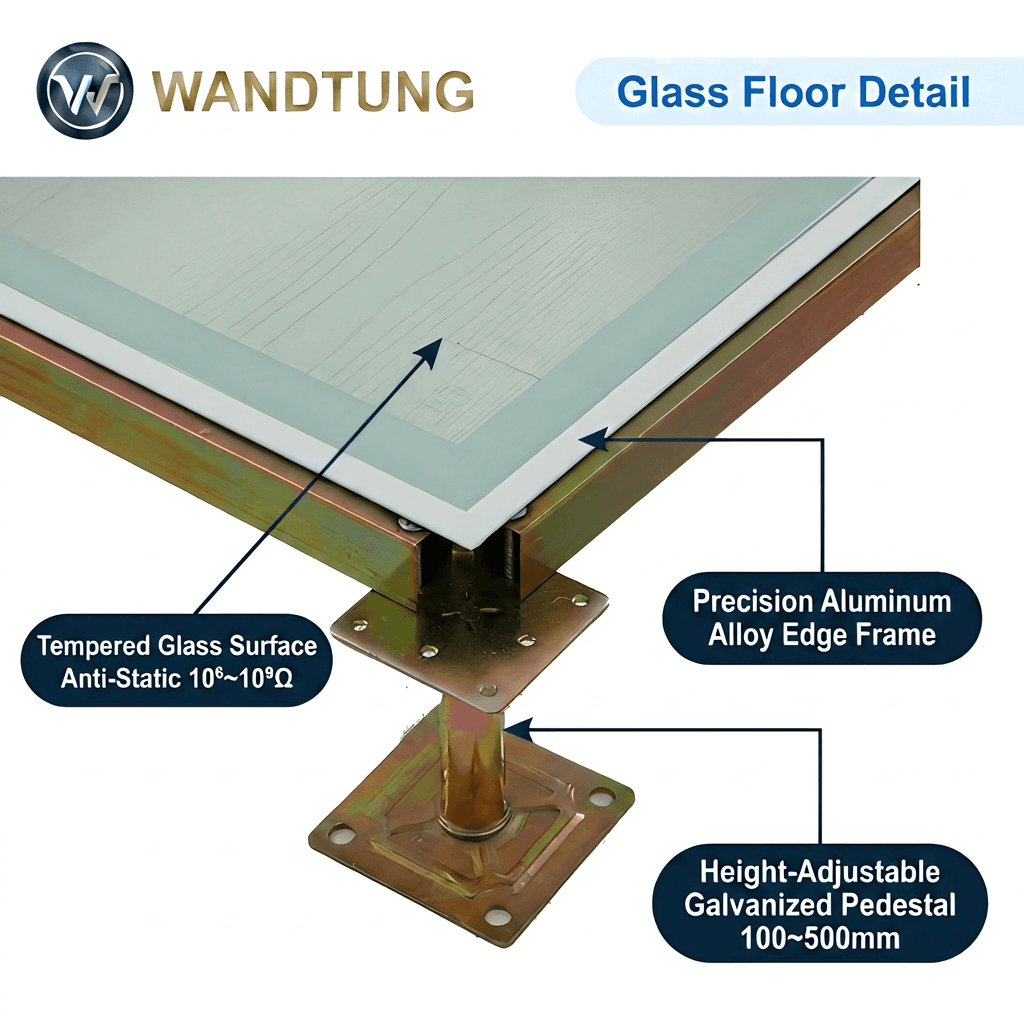

The Wandtung Glass Anti-Static Raised Floor pairs a 12mm tempered glass surface with a precision aluminum alloy edge frame and height-adjustable galvanized pedestal, giving data center white space, network operations centers, offices and exhibition spaces an elevated access floor that is both anti-static and visually transparent, exposing the cable routing beneath.
Capabilities
Key Features
- 12mm tempered glass surface, anti-static resistance 10^6–10^9 Ω
- See-through design exposing underfloor cable routing
- Precision aluminum alloy edge frame
- Height-adjustable galvanized pedestal, 100–500mm
- High load bearing, 800–1000 kg/m²
- Elegant, decorative finish for modern offices and showrooms
- Custom panel sizes; OEM/ODM available
Specifications
Technical Specifications
Panel Specification
| Panel Size | 600 x 600 mm (standard), custom sizes available |
|---|---|
| Surface Material | 12mm tempered glass |
| Edge Frame | Precision aluminum alloy |
| Load Rating | 800–1000 kg/m² |
| Surface Resistance | 10^6–10^9 Ω (anti-static) |
Pedestal
| Material | Galvanized steel |
|---|---|
| Height Range | 100–500mm, adjustable |
Deployment
Applications
- Data center white space with visible cable routing
- Network operations centers
- Modern offices
- Showrooms and exhibitions
Configuration
Customization Options
- Panel size
- Pedestal height
- Load rating
- OEM/ODM
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
Yes. The 12mm tempered glass surface with aluminum alloy edge frame is rated for 800–1000 kg/m², comparable to standard steel or calcium sulphate core anti-static floor panels, while adding a transparent, decorative finish.
Interested in Glass Anti-Static Raised Floor?
Get a datasheet, technical consultation, or a project-specific quote from our engineering team.
