Power Distribution
Intelligent PDU
Network-managed rack power distribution with monitoring, metering and remote switching.
Overview
Product Overview
The Wandtung Intelligent PDU is a network-managed power distribution unit built for data centers that require visibility and control at the outlet level. It combines current, voltage, power and energy monitoring, temperature & humidity sensing, and remote outlet switching, accessible via SNMP, Modbus, RS485 and a web management interface.
Capabilities
Key Features
- Outlet-level current, voltage and power monitoring
- Cumulative energy consumption logging
- Temperature & humidity sensor ports
- Remote individual outlet switching and sequencing
- SNMP, Modbus RTU/TCP and RS485 communication
- Web-based management interface with alarm thresholds
Specifications
Technical Specifications
Electrical Parameters
| Rated Voltage | 200–250V / 380–415V |
|---|---|
| Rated Current | 16A / 32A / 63A |
| Monitoring Accuracy | ±1% current / voltage |
Monitoring & Communication
| Protocols | SNMP v1/v2c/v3, Modbus RTU/TCP, RS485, TCP/IP |
|---|---|
| Monitoring Points | Voltage, current, power, energy, temperature, humidity |
| Switching | Per-outlet on/off, sequenced power-up |
| Alarm Management | Threshold alarms via SNMP trap, email, web |
Mechanical
| Mounting | 0U vertical / horizontal |
|---|---|

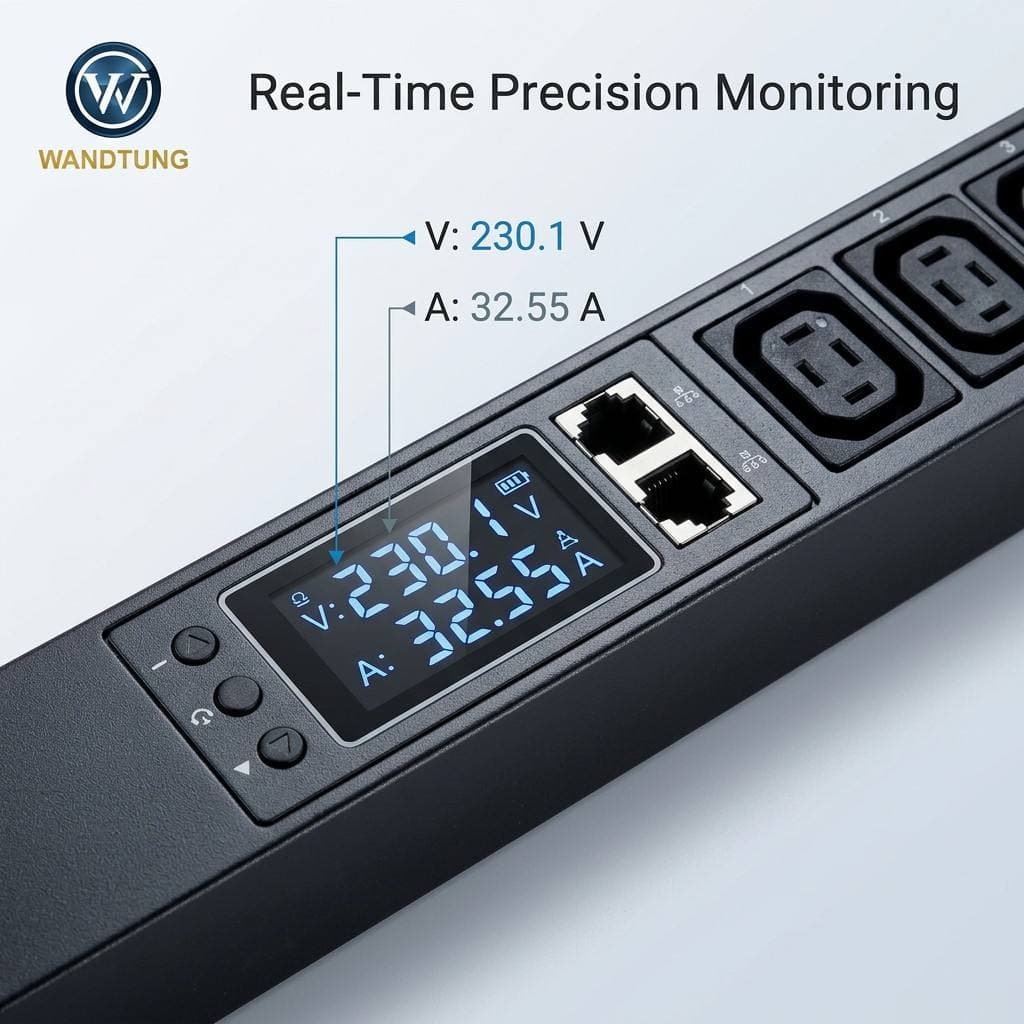

| Display | Local LCD (voltage/current/power) |
| Outlet Options | IEC C13/C19, country-specific |
Deployment
Applications
- Hyperscale and colocation data centers
- Remote / lights-out telecom sites
- Edge data centers requiring remote power cycling
- Environments requiring energy usage reporting (PUE tracking)
Configuration
Customization Options
- Outlet count, type and grouping
- Communication protocol selection
- Firmware / SNMP MIB customization
- Environmental sensor kit selection
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
What is a smart PDU?
A smart (intelligent) PDU is a rack power distribution unit with built-in monitoring and network connectivity, allowing administrators to remotely measure current, voltage, power and energy consumption at the unit or outlet level, and in switched models, remotely turn outlets on or off.
Metered PDU vs switched PDU — what's the difference?
A metered PDU reports power usage locally or remotely but cannot control outlets. A switched PDU includes everything a metered PDU offers plus remote, individually addressable outlet control, useful for remote reboot of hung equipment and sequenced power-up.
Does Wandtung manufacture intelligent PDUs?
Yes. Wandtung designs and manufactures intelligent PDUs with outlet-level monitoring, SNMP/Modbus/RS485 connectivity and remote switching for data center, telecom and industrial customers worldwide, including OEM/ODM programs.
How do I choose a data center PDU?
Match rated current and voltage to your rack's circuit, choose vertical (0U) mounting for high outlet counts or horizontal for shallow racks, decide whether you need metering, monitoring, or remote switching, and confirm outlet type against your equipment's power cords.
Interested in Intelligent PDU?
Get a datasheet, technical consultation, or a project-specific quote from our engineering team.
