Data Center Flooring
Calcium Sulphate Raised Floor

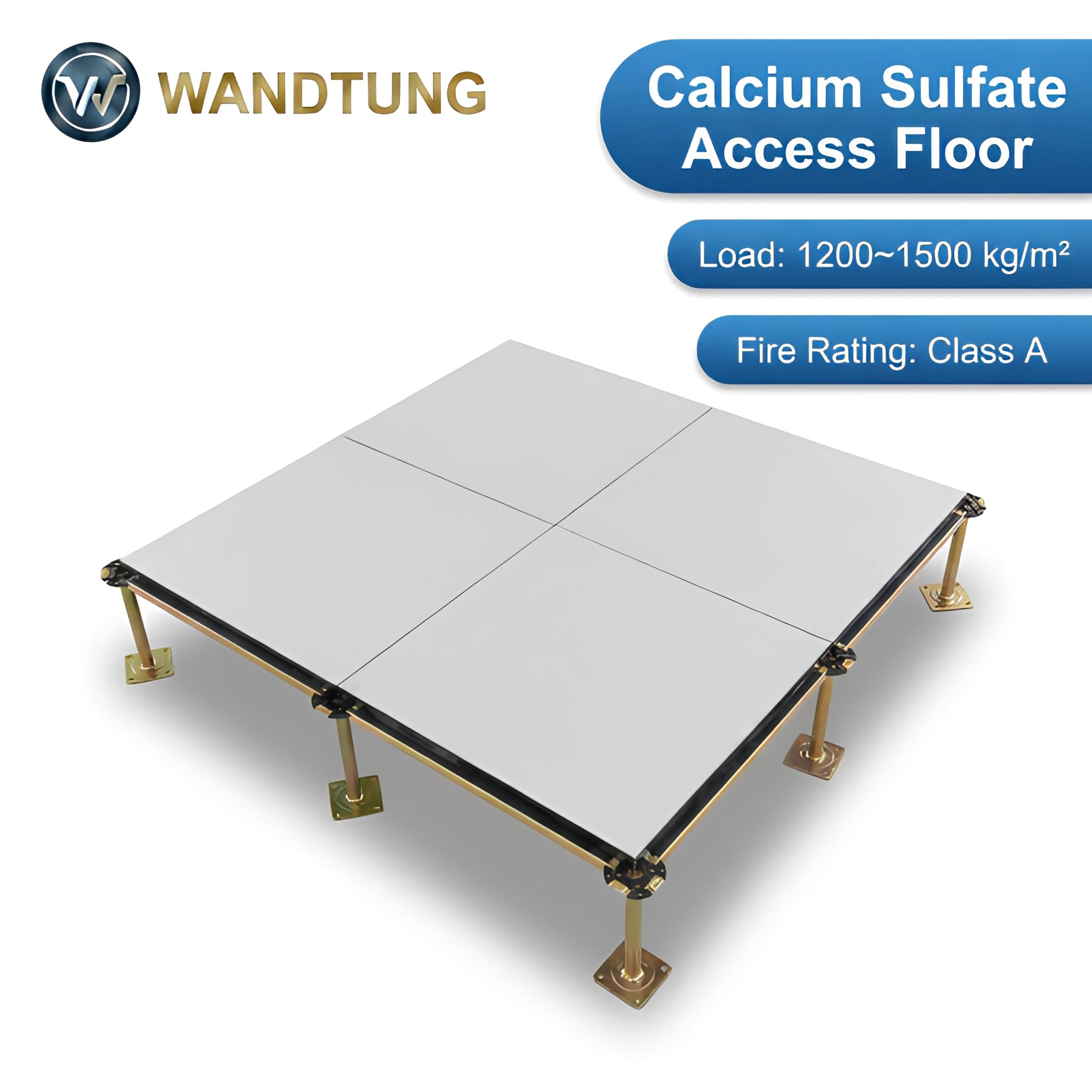

High-strength calcium sulphate core raised floor panel for heavy load environments.
Overview
Product Overview

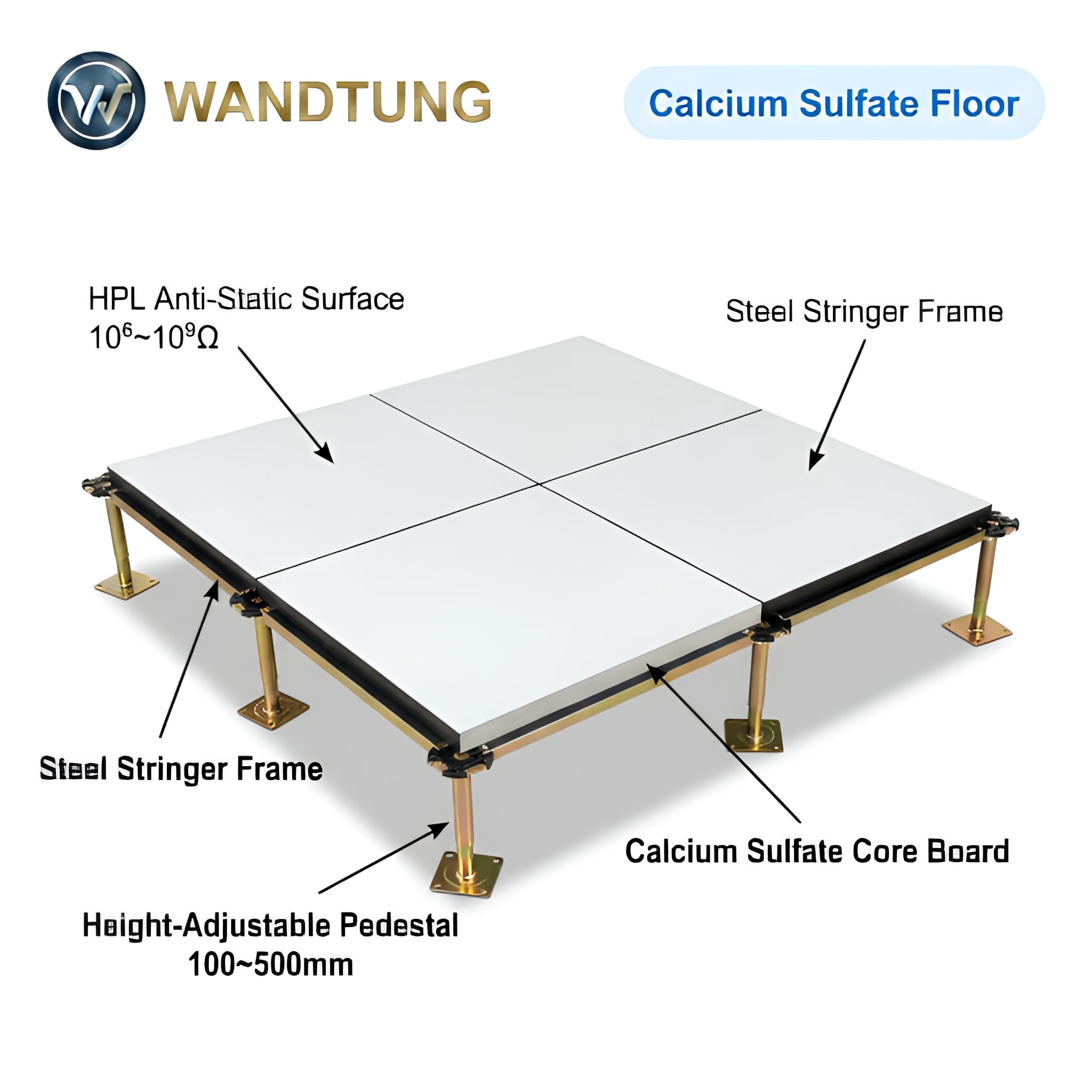

Wandtung Calcium Sulphate Raised Floor panels use a dense calcium sulphate core for high load capacity and dimensional stability, suited to data halls and equipment rooms with heavy point loads or fire-rating requirements beyond a standard steel-encased panel. Panels combine an HPL anti-static surface with precision black edge trim protection, a galvanized steel stringer frame, and a height-adjustable pedestal system.
Capabilities
Key Features
- High-density calcium sulphate core for load strength
- HPL anti-static surface, resistance 10^6–10^9 Ω

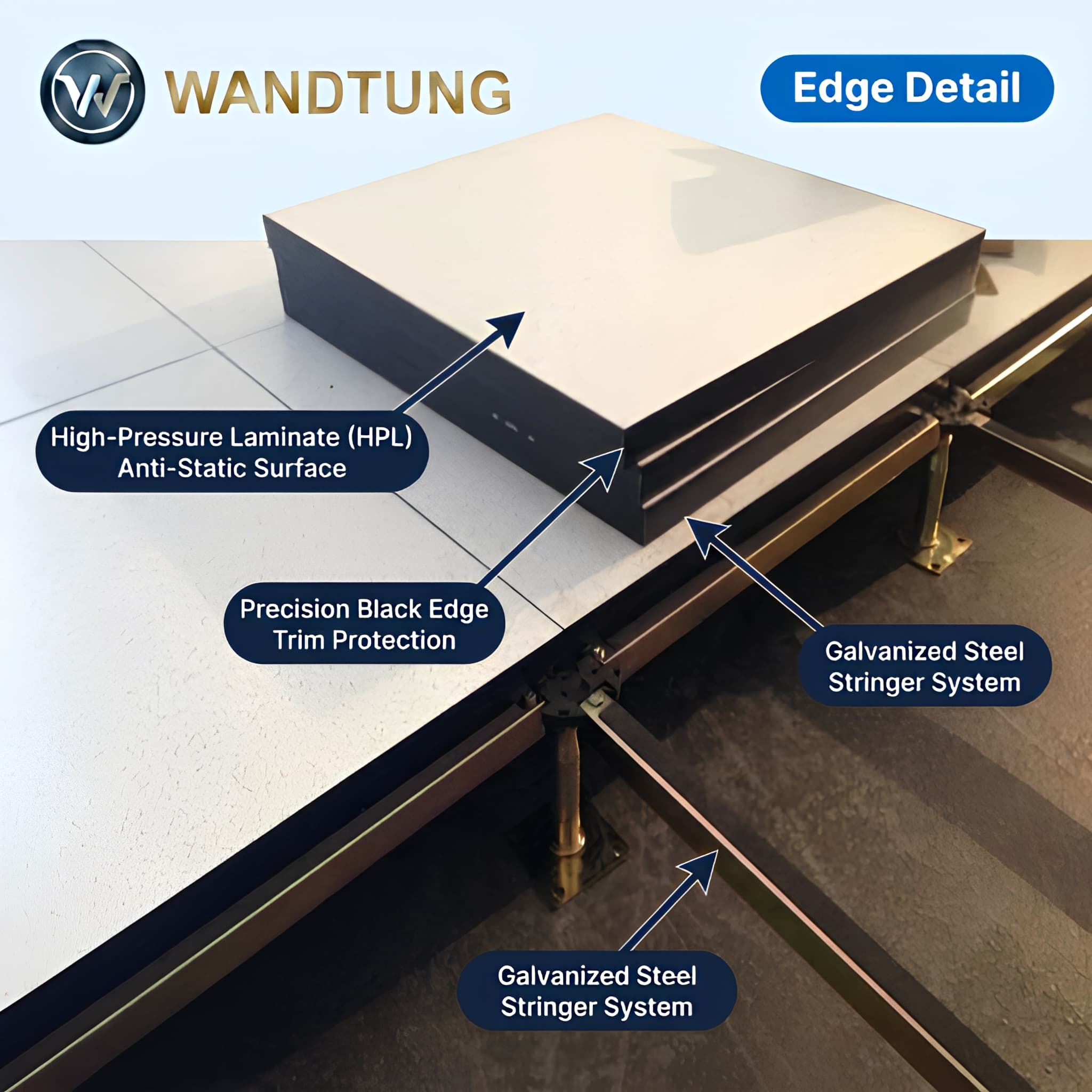

- Precision black edge trim protection
- Dimensionally stable under humidity variation
- Class A fire rating, non-combustible core
- Galvanized steel stringer frame and height-adjustable pedestal, 100–500mm
Specifications
Technical Specifications
Panel Specification
| Panel Size | 600 x 600 mm (standard), custom sizes available |
|---|---|
| Core Material | Calcium sulphate, steel-encased |
| Surface Finish | HPL anti-static laminate with black edge trim |
| Load Rating | 1200 kg/m² uniform load, up to 1250 kg concentrated load (model dependent) |
| Surface Resistance | 10^6–10^9 Ω (anti-static) |
| Fire Rating | Class A, non-combustible core |
Pedestal & Frame
| Pedestal Material | Galvanized steel, adjustable |
|---|---|
| Height Range | 100–500mm, adjustable |
| Frame | Galvanized steel stringer system |
Deployment
Applications

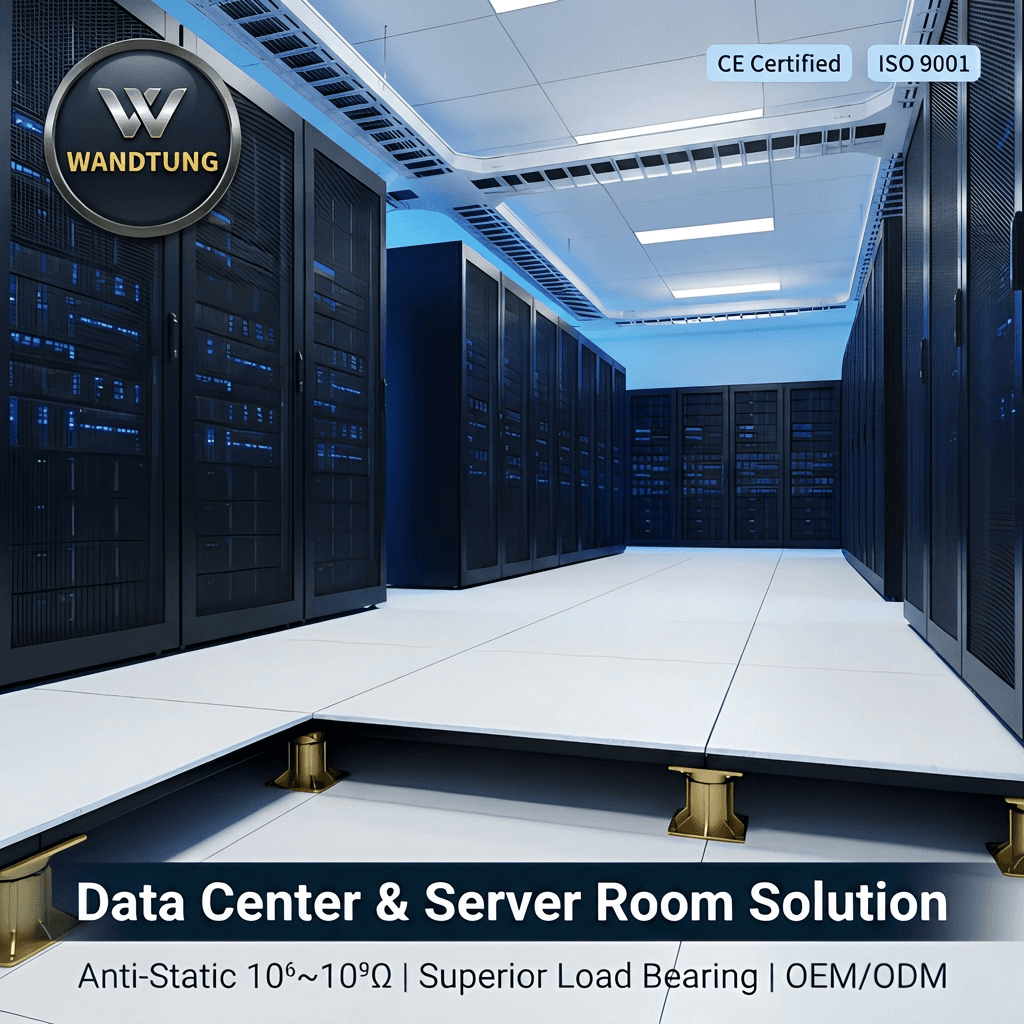

- High-load data halls
- Fire-rated equipment rooms
- Heavy equipment mounting areas
Configuration
Customization Options
- Panel thickness
- Finish
- Pedestal system
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
When should I choose calcium sulphate over a steel raised floor panel?
Calcium sulphate core panels are typically chosen when higher load capacity, better fire resistance, or greater dimensional stability under humidity change is needed compared to a standard steel-encased honeycomb panel.
What fire rating does the calcium sulphate panel carry?
The calcium sulphate core is non-combustible and the panel carries a Class A fire rating, making it suitable for data halls and equipment rooms with stricter fire-safety requirements than a standard steel-encased panel.
