Data Center Flooring
Steel Cementitious Raised Floor
HPL anti-static surface, steel-encased foaming cement core raised floor panel, honeycomb-reinforced base.
Overview
Product Overview

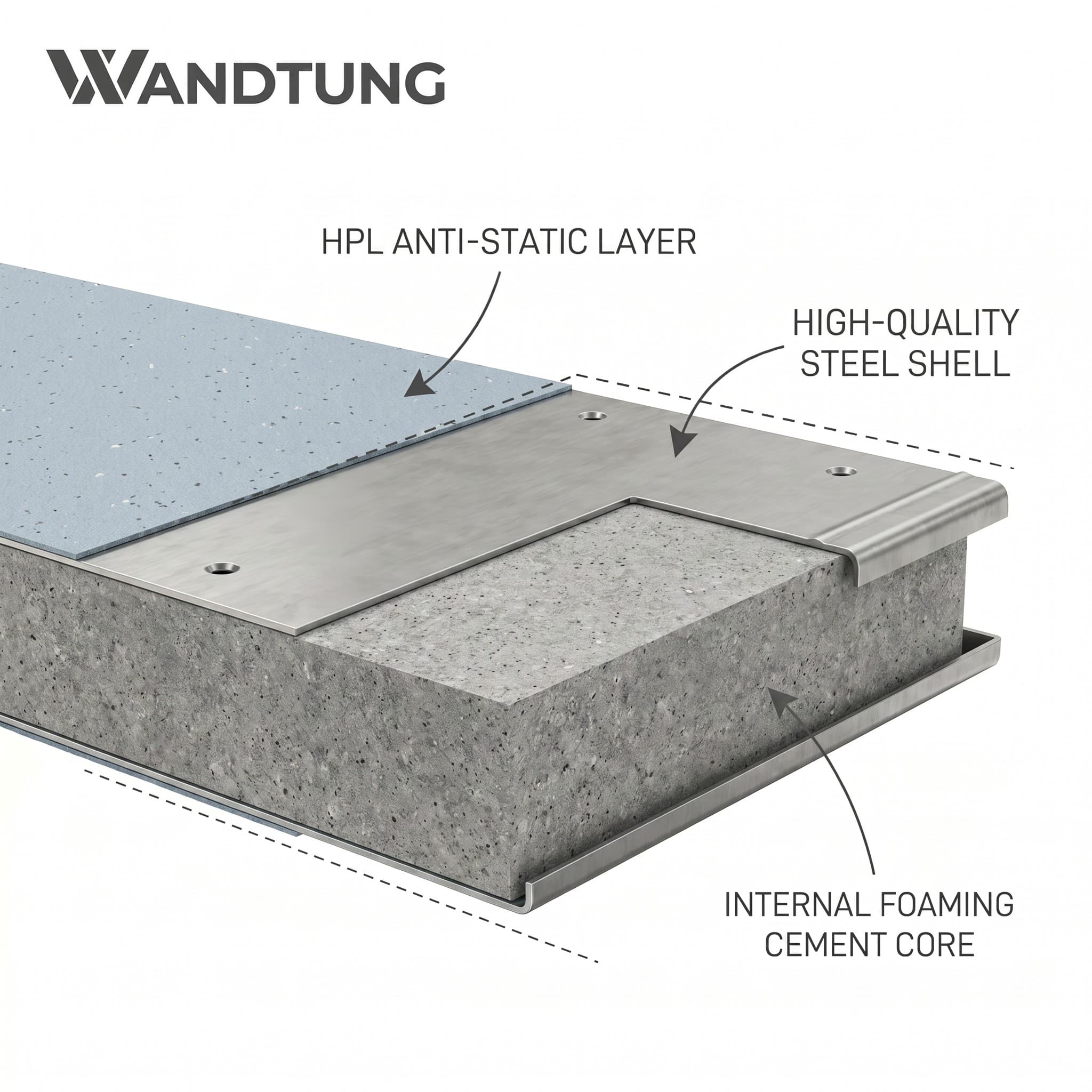

Wandtung Steel Cementitious Raised Floor panels pair a high-pressure laminate (HPL) anti-static surface with a lightweight foaming cement core fully encased in a high-quality steel shell, reinforced by a welded honeycomb steel base structure. The panel sits on an adjustable pedestal and stringer system, giving a cost-effective, widely used raised floor option for standard data center and equipment room loads.
Capabilities
Key Features
- HPL (high-pressure laminate) anti-static surface layer
- High-quality steel shell fully encasing the panel core
- Internal foaming cement core for lightweight strength

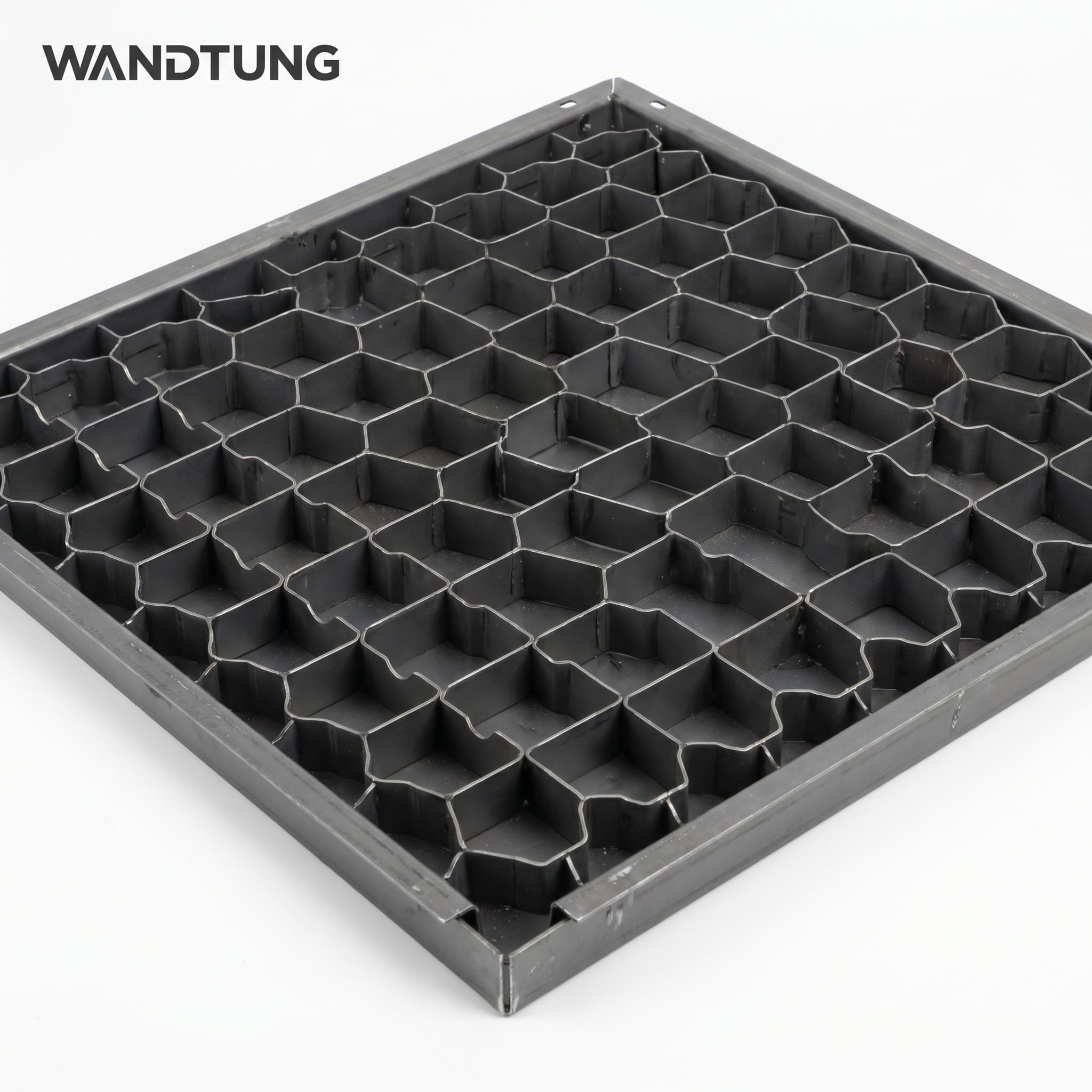

- Welded honeycomb steel base structure for load distribution
- Cost-effective for standard load requirements
- Consistent panel-to-panel dimensional tolerance

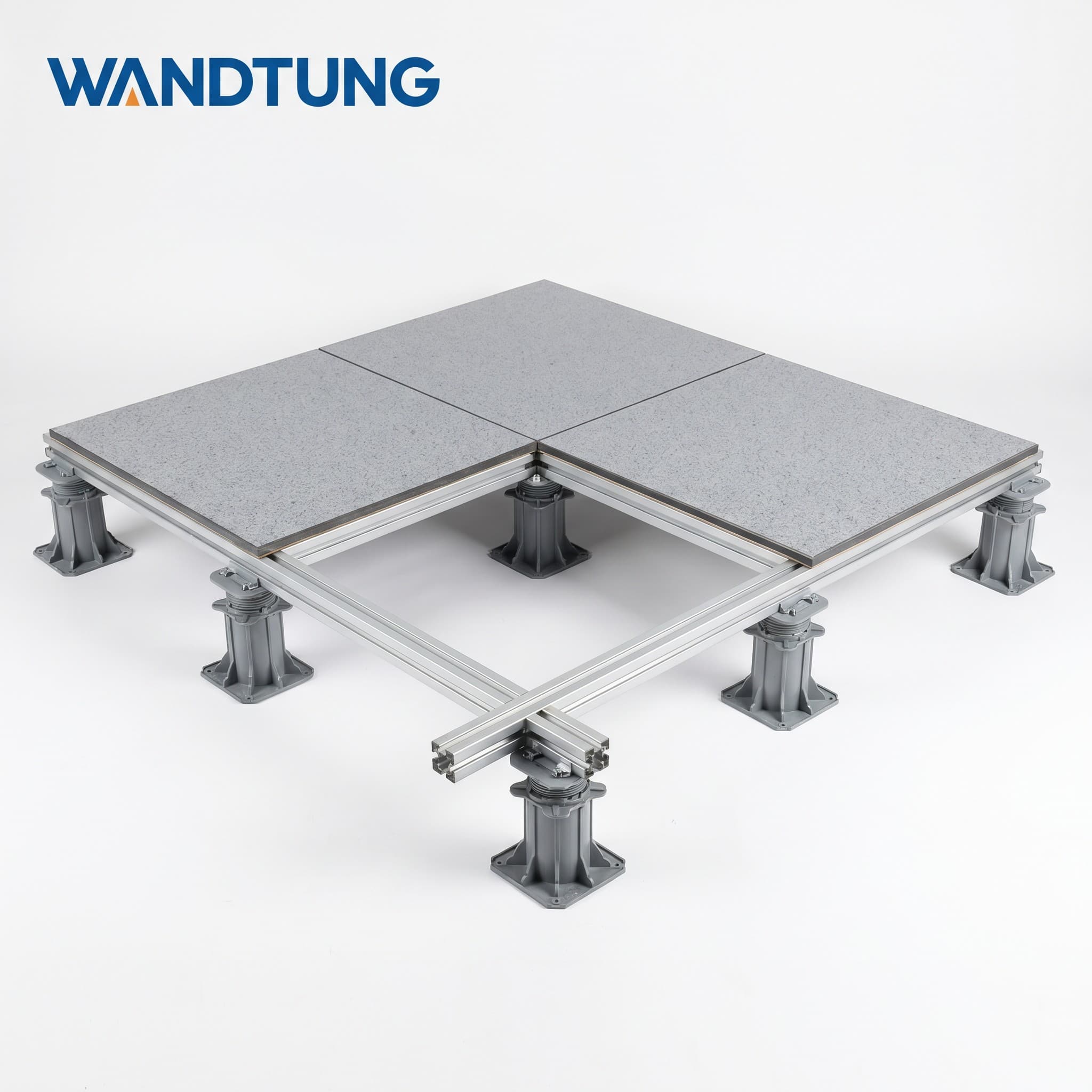

- Adjustable pedestal and stringer support system
Specifications
Technical Specifications
Panel Specification
| Panel Size | 600 x 600 mm |
|---|---|
| Surface | HPL anti-static laminate |
| Core Material | Foaming cement, steel-encased |
| Base Structure | Welded honeycomb steel |
| Load Rating | Up to 900 kg concentrated load (model dependent) |
Deployment
Applications

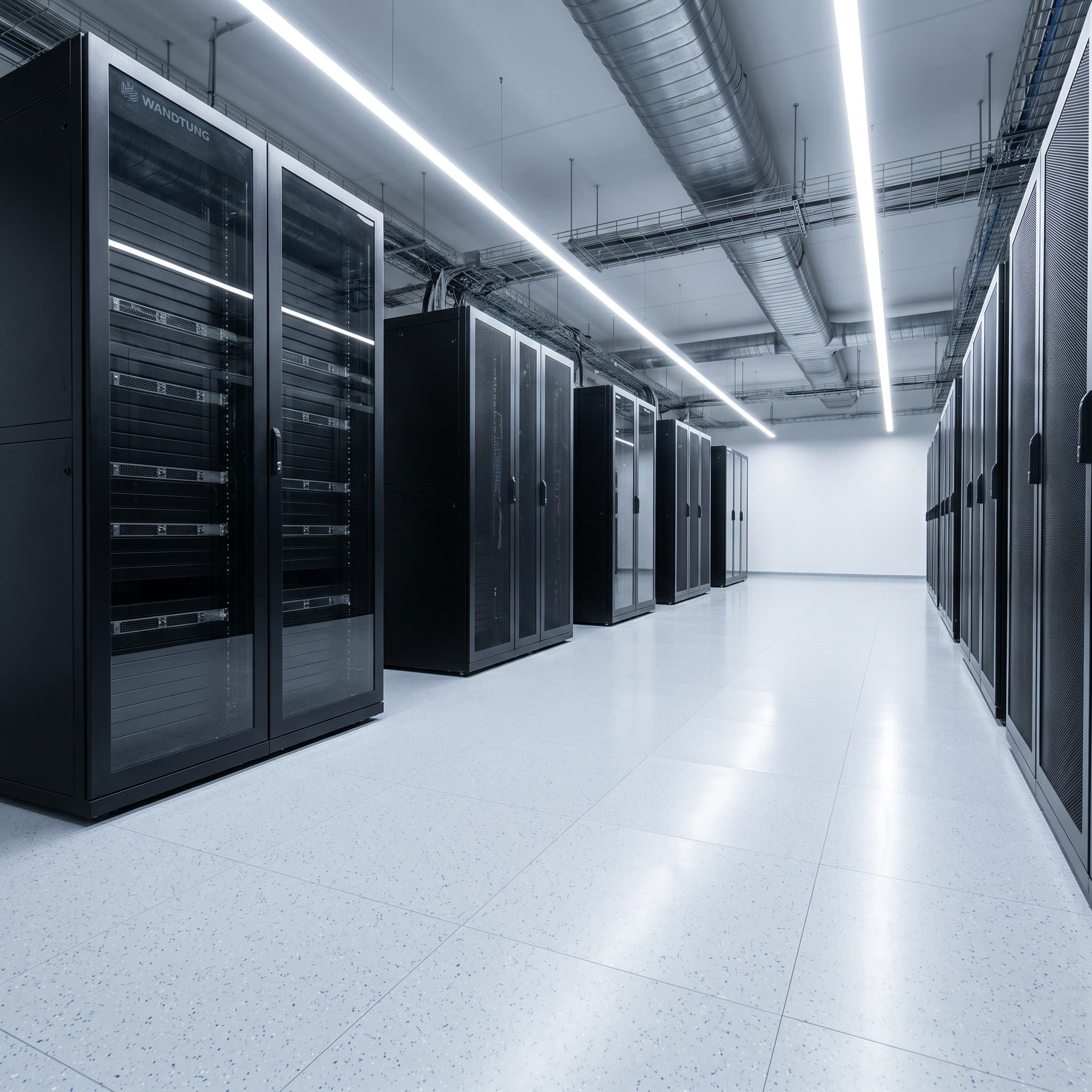

- Standard data center white space
- Equipment rooms
- General commercial raised floor applications
Configuration
Customization Options
- Panel thickness
- Finish
- Pedestal height
Standards
Compliance & Standards
FAQ
Frequently Asked Questions
Is steel cementitious raised floor suitable for a typical data center?
Yes — it's one of the most widely used raised floor constructions for standard data center loads, offering a cost-effective balance of load capacity, availability and compatibility with common pedestal systems.
What does the honeycomb steel base structure do?
The welded honeycomb steel base under the cement core distributes concentrated point loads evenly across the panel and pedestal supports, adding rigidity without significantly increasing panel weight.
Interested in Steel Cementitious Raised Floor?
Get a datasheet, technical consultation, or a project-specific quote from our engineering team.
